Product Model
msb4n-1/4:j1d1a1-wp
Key Features
- 1The MSB4N-1/4:J1D1A1-WP offers a +12 bar pressure regulation range, ensuring consistent and reliable air supply for industrial applications.
- 2Equipped with three 1/4" NPT threaded female ports, this unit provides flexible pneumatic connections for various industrial setups.
- 3Rated for 750 L/min (nominal), this air preparation unit ensures efficient air flow and quick processing times in industrial automation.
- 4The unit features a 24V DC control coil, allowing for easy integration with various control systems and ensuring precise control over the air preparation process.
- 5Built with high-quality components, the MSB4N-1/4:J1D1A1-WP is designed to withstand the demands of industrial environments, ensuring long-lasting performance and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Actuator lock | Rotary knob with integrated lock | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Manually rotating |
| Structural design | Filter regulator with pressure gauge Proportional standard oil mist lubricator | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |

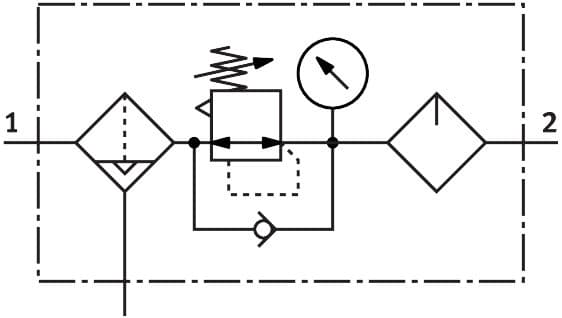

| Bowl guard | Plastic bowl guard | Symbol | 00991599 |
| Pressure gauge | with pressure gauge | Operating pressure | 4.5bar 14bar |
| Pressure regulation range | 4bar 12bar | Standard nominal flow rate | 750l/min |
| Coil characteristics | 24 V DC: 1.5 W | Operating medium | Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Storage temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Temperature of medium | 5°C 60°C | Ambient temperature | -10°C 60°C |
| Product weight | 500g | Type of mounting | With accessories |
| Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
| Pneumatic connection 3 | G1/4 | Housing material | Die-cast aluminum |
| Material of bowl | PC | Manufacturer ID | 541435 |
Specifications may be subject to change without notice
