Product Model
ms9-lfx-1-u
Key Features

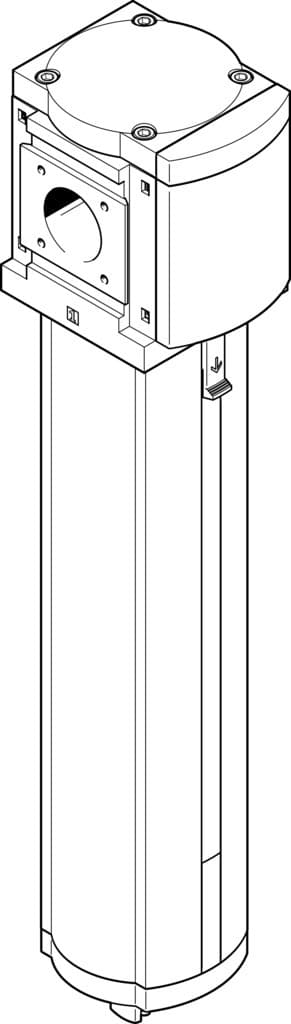

- 1The Festo MS9-LFX-1-U activated carbon filter ensures high-quality compressed air by removing impurities and contaminants, maintaining air purity class according to ISO 8573-1:2010 [1:4:1].
- 2This filter can be mounted vertically with a ±5° angle, offering flexibility in installation and integration into various pneumatic systems.
- 3The MS9-LFX-1-U operates effectively within a pressure range of 0 to 20 bar, making it suitable for various industrial applications.
- 4With a maximum standard flow rate of 6500 l/min, this filter ensures efficient air circulation and purification in high-demand environments.
- 5Built with a die-cast aluminum housing and activated carbon filter media, the MS9-LFX-1-U offers robust performance and long-lasting reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 9 | Series | MS |
| Mounting position | Vertical +/- 5° | Structural design | Active carbon filter |
| Symbol | 00991519 | Operating pressure | 0bar 20bar |
| Max. standard flow rate for air quality class | 6500l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [1:4:2] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:4:1] |
| Temperature of medium | 5°C 30°C | Residual oil content | 0.003mg/m3 |
| Ambient temperature | -10°C 60°C | Product weight | 2000g |
| Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | G1 |
| Pneumatic connection 2 | G1 | Covering material | PA |
| Seals material | NBR | Compressed air filter material | Activated carbon |
| Housing material | Die-cast aluminum | Material of bowl | Wrought aluminum alloy |
| Inspection window material | PA | Manufacturer ID | 553032 |
Specifications may be subject to change without notice
