Product Model

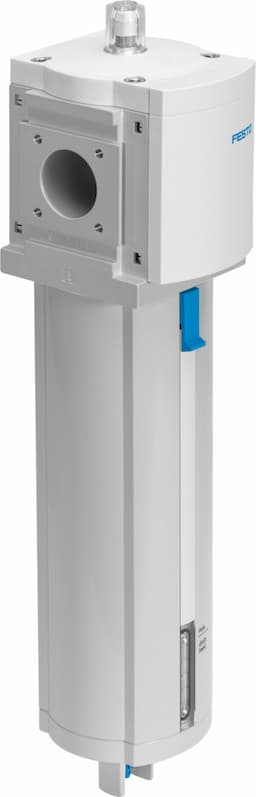

ms9-lfm-g-aum-hf-da
Key Features
- 1High Flow Rate: Achieves up to 6,500 l/min standard flow rate for clean air class.
- 2Precise Filtration: Filters particles down to 0.01µm for superior air purity.
- 3Manual Condensate Drain: Includes a manually rotating condensate drain for easy maintenance.
- 4Differential Pressure Indicator: Equipped with a visual display differential pressure indicator for real-time monitoring.
- 5Robust Construction: Built with die-cast aluminum housing and PA material covering for durability and corrosion resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | MS | Size | 9 |
| Structural design | Fiber filter | Grade of filtration | 0.01μm |
| Condensate drain | Manually rotating | Symbol | 00991543 |
| Operating pressure | 0bar 20bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] |
| Air quality class at the output | Compressed air as per ISO?8573-1:2010 [3:4:2] | Max. standard flow rate for air quality class | 7800l/min |
| Min. standard flow rate for air quality class | 390l/min | Filter efficiency | 99.9999% |
| Max. condensate volume | 225ml | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Storage temperature | -10°C 60°C |
| Filter efficiency, fine particles | 99.995% | MPPS | 0.1μm |
| MPPS filter efficiency | 99.968% | Residual oil content | 0.01mg/m3 |
| Filter efficiency, oil aerosol | 99% | Differential pressure display | Visual display |
| Type of mounting | Optionally: Line installation With accessories | Mounting position | Vertical +/- 5° |
| Pneumatic connection 1 | Battery module | Pneumatic connection 2 | Battery module |
| Housing material | Die-cast aluminum | Covering material | PA |
| Compressed air filter material | Borosilicate fiber | Material of bowl | Wrought aluminum alloy |
| Inspection window material | PA | Seals material | NBR |
| Product weight | 2500g | Manufacturer ID | 564052 |
Specifications may be subject to change without notice
