Product Model
ms6-wb
Key Features

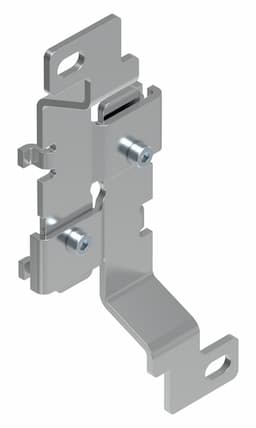

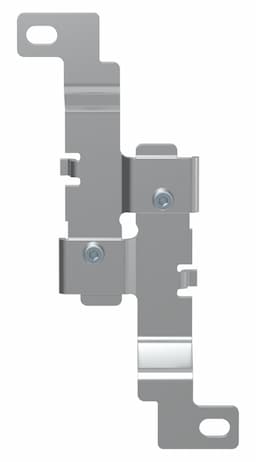

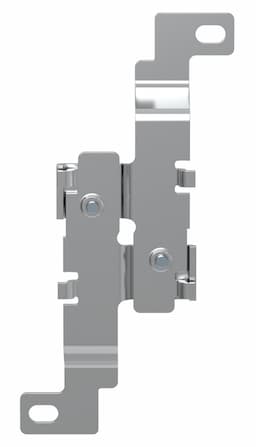

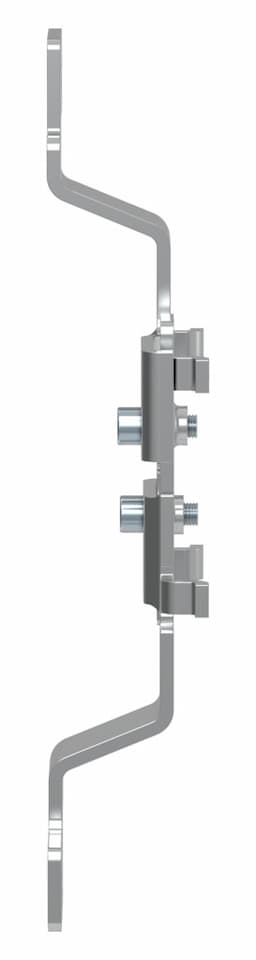

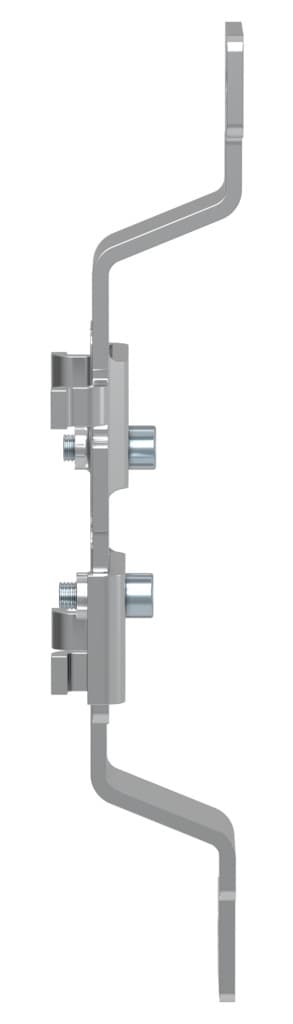

- 1The Festo MS6-WB mounting bracket is designed for wall mounting, ensuring secure and stable installation in your pneumatic system.
- 2This accessory features a corrosion resistance class of 2, indicating moderate corrosion stress, making it suitable for industrial environments.
- 3The MS6-WB operates within a temperature range of -10°C to 60°C, accommodating various temperature conditions in your pneumatic setup.
- 4Made from steel, the mounting bracket ensures durability and strength, while the screws are also made of steel for added stability.
- 5The MS6-WB is RoHS-compliant and free of copper and PTFE, adhering to environmental and safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Product weight | 121g |
| Note on materials | RoHS-compliant | Material of screws | Steel |
| Bracket material | Steel | Manufacturer ID | 532196 |
Specifications may be subject to change without notice
