Product Model
ms6-sv-1/2-e-10v24-so-ag-mp1
Key Features

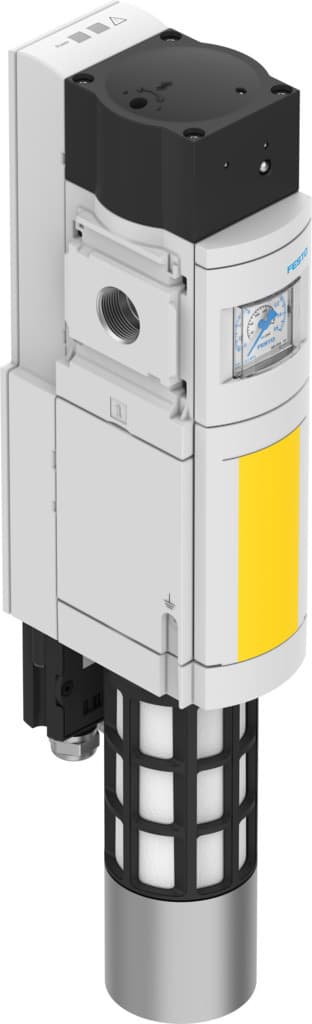

- 1The Festo MS6-SV-1/2-E-10V24-SO-AG soft start/quick exhaust valve ensures reliable operation with its integrated soft-start function, preventing unexpected start-ups and ensuring safe pressure management.
- 2This valve features a high-performance level e (PL e) and SIL 3 safety integrity level, making it suitable for critical applications up to category 4.
- 3With an internal pilot air supply and soft sealing principle, the MS6-SV-1/2-E-10V24-SO-AG provides efficient and leak-free operation.
- 4The valve is designed with a 3/2-way monostable function and can be equipped with a pressure gauge or pressure sensor for precise monitoring.
- 5The Festo MS6-SV-1/2-E-10V24-SO-AG is built to withstand harsh industrial environments, featuring IP65 protection and a sound pressure level of 75 dB(A).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | MS | Size | 6 |
| Width dimension | 62mm | Safety function | Exhausting Prevention of unexpected start-up (pressurization) |
| Safety integrity level (SIL) | Exhaust/SIL 3 Avoidance of unexpected start-up (pressurization)/SIL 3 | Performance Level (PL) | Exhaust/up to category 4, performance level e Avoidance of unexpected start-up (pressurization)/up to category 4, performance level e |
| Note on forced dynamization | Switching frequency at least once a month | Structural design | Piston seat |
| Lap | Underlap | Actuation type | Electrical |
| Pilot air supply port | Internal | Sealing principle | Soft |
| Exhaust air function | Without flow control option | Position sensing principle | Piston magnet principle |
| Conforms to standard | DIN EN ISO 13849-1 | Manual override | None |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Symbol | 00995704 | Valve function | 3/2, closed, monostable Pressure build-up function |
| Operating pressure | 3.5bar 10bar | Pressure gauge | with pressure gauge |
| C value | 19.3l/sbar | b-value | 0.21 |
| Standard nominal flow rate | 4300l/min | Standard flow rate exhaust 6-> 0 bar | 9000l/min |
| Max. switching frequency | 0.5Hz | Switching time off | 40ms |
| On switching time | 130ms | Duty cycle | 100% |
| Signal status display | LED Floating contact | Nominal operating voltage DC | 24V |
| Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Noise level | 75dB(A) | Degree of protection | IP65 With plug socket |
| Temperature of medium | -10°C 50°C | Ambient temperature | -10°C 50°C |
| Storage temperature | -10°C 50°C | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Certification | RCM compliance mark |
| KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive as per EU machinery directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK instructions for machines To UK RoHS instructions | Certificate issuing authority | IFA 1001180 Intertek UK-MCR-0086 |
| Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
| Product weight | 2210g | Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 | Pneumatic connection 3 | G1 |
| Electrical connection | 9-pin Sub-D | Housing material | Die-cast aluminum |
| Seals material | NBR | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 8190258 |
Specifications may be subject to change without notice
