Product Model

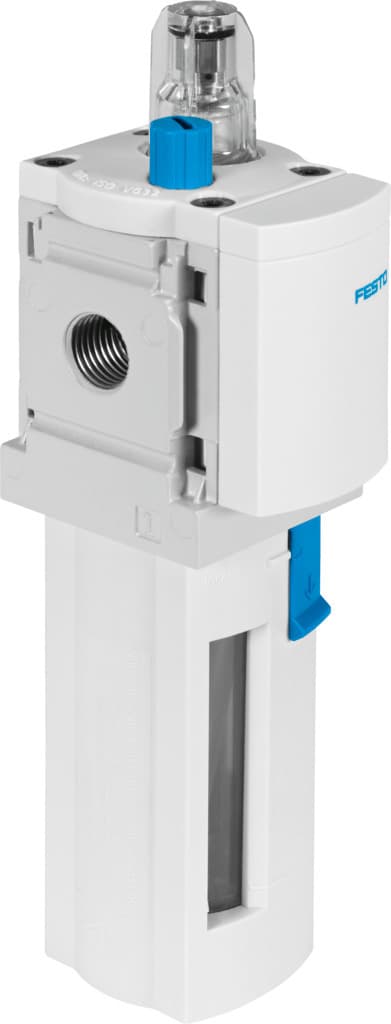

ms6n-loe-3/8-r
Key Features
- 1The Festo MS6N-LOE-3/8-R lubricator ensures reliable compressed air by filtering out contaminants and maintaining optimal flow rates, enhancing machine availability and performance.
- 2With a corrosion resistance class of 2 according to Festo standard 940 070, the MS6N-LOE-3/8-R is suitable for applications in normal industrial environments, providing durability and longevity.
- 3Designed for straightforward operation, the MS6N-LOE-3/8-R features a simple installation process, minimizing setup time and ensuring quick integration into your pneumatic system.
- 4Available in 3/8 NPT, the MS6N-LOE-3/8-R offers flexible pneumatic connections, allowing for easy integration with various pneumatic components and systems.
- 5The lubricator operates efficiently with a standard nominal flow rate of 88.3 scfm, ensuring consistent performance and maintaining the quality of compressed air in your industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Mounting position | Vertical +/- 5° | Structural design | Proportional standard oil mist lubricator |
| Max. oil capacity | 75cm3 | Bowl guard | Plastic bowl guard |
| Symbol | 00991532 | Operating pressure | 1bar 16bar |
| Minimum flow rate for lubricator function | 50l/min | Standard nominal flow rate | 5300l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Temperature of medium | -10°C 60°C | Oil viscosity | ISO VG 32 |
| Ambient temperature | -10°C 60°C | Product weight | 600g |
| Type of mounting | Optionally: Line installation With accessories | Pneumatic connection 1 | 3/8 NPT |
| Pneumatic connection 2 | 3/8 NPT | Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum | Material of bowl | PC |
| Manufacturer ID | 531712 |
Specifications may be subject to change without notice
