Product Model

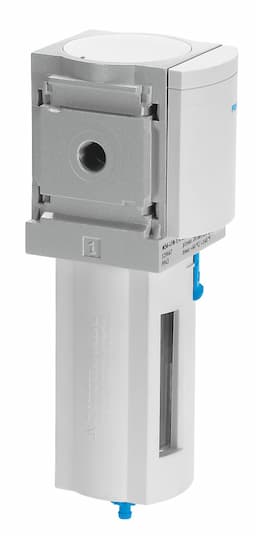

ms6n-lfm-1/2-brm
Key Features
- 1The Festo MS6N-LFM-1/2-BRM is designed to provide excellent air filtration with a 5 μm filter grade, ensuring high-quality air for your pneumatic systems.
- 2This filter features a compact size with a grid dimension of 62 mm, making it ideal for various industrial applications where space is limited.
- 3The MS6N-LFM-1/2-BRM offers reliable performance with a recommended maximum differential pressure of 0.35 bar, ensuring consistent operation.
- 4This filter is part of the MS series, known for its cost-optimised combinations and excellent energy efficiency, helping you save up to 30% on energy costs.
- 5The MS6N-LFM-1/2-BRM is available in various mounting options, including without mounting bracket and with basic design mounting brackets, providing flexibility in installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | MS | Size | 6 |
| Structural design | Fiber filter | Grade of filtration | 1μm |
| Condensate drain | Manually rotating | Symbol | 00991519 |
| Operating pressure | 0bar 20bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] Inert gas |
| Air quality class at the output | Compressed air as per ISO?8573-1:2010 [5:4:3] | Max. standard flow rate for air quality class | 950l/min |
| Min. standard flow rate for air quality class | 140l/min | Filter efficiency | 99.99% |
| Max. condensate volume | 38ml | Bowl guard | Plastic bowl guard |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Storage temperature | -10°C 60°C |
| Filter efficiency, fine particles | 99% | Residual oil content | 0.5mg/m3 |
| Filter efficiency, oil aerosol | 90% | Type of mounting | Optionally: Line installation With accessories |
| Mounting position | Vertical +/- 5° | Pneumatic connection 1 | 1/2 NPT |
| Pneumatic connection 2 | 1/2 NPT | Housing material | Die-cast aluminum |
| Compressed air filter material | Borosilicate fiber | Material of bowl | PC |
| Seals material | NBR | Note on materials | RoHS-compliant |
| Product weight | 600g | Manufacturer ID | 531849 |
Specifications may be subject to change without notice
