Product Model

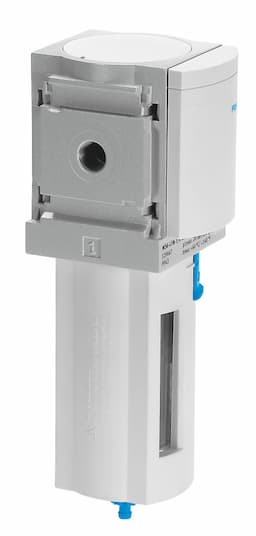

ms6n-lfm-1/2-arv
Key Features
- 1The Festo MS6N-LFM-1/2-ARV features a micro filter assembly with a filtration grade of 0.01 microns, ensuring exceptionally clean compressed air for your pneumatic systems.
- 2This filter includes a fully-automatic condensate drain, eliminating the need for manual intervention and ensuring continuous operation without interruptions.
- 3Equipped with a differential pressure indicator, the MS6N-LFM-1/2-ARV allows for real-time monitoring of the filter's performance, ensuring optimal system operation.
- 4With a grid dimension of 62 mm, the MS6N-LFM-1/2-ARV offers a compact design that fits seamlessly into various pneumatic system configurations.
- 5Designed for reliability and efficiency, this filter is part of the MS series from Festo, known for its high-quality components and robust construction.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | MS | Size | 6 |
| Structural design | Fiber filter | Grade of filtration | 0.01μm |
| Condensate drain | Fully automatic Manual, non-detenting | Symbol | 00991520 |
| Operating pressure | 2bar 12bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] Inert gas |
| Air quality class at the output | Compressed air as per ISO?8573-1:2010 [3:4:2] | Max. standard flow rate for air quality class | 900l/min |
| Min. standard flow rate for air quality class | 135l/min | Filter efficiency | 99.9999% |
| Max. condensate volume | 38ml | Bowl guard | Plastic bowl guard |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Storage temperature | -10°C 60°C |
| Filter efficiency, fine particles | 99.995% | MPPS | 0.05μm |
| MPPS filter efficiency | 99.95% | Residual oil content | 0.01mg/m3 |
| Filter efficiency, oil aerosol | 99% | Type of mounting | Optionally: Line installation With accessories |
| Mounting position | Vertical +/- 5° | Pneumatic connection 1 | 1/2 NPT |
| Pneumatic connection 2 | 1/2 NPT | Housing material | Die-cast aluminum |
| Compressed air filter material | Borosilicate fiber | Material of bowl | PC |
| Seals material | NBR | Note on materials | RoHS-compliant |
| Product weight | 600g | Manufacturer ID | 531867 |
Specifications may be subject to change without notice
