Product Model

ms6n-ldm1-1/4-p40

Manufacturer

Festo

Key Features

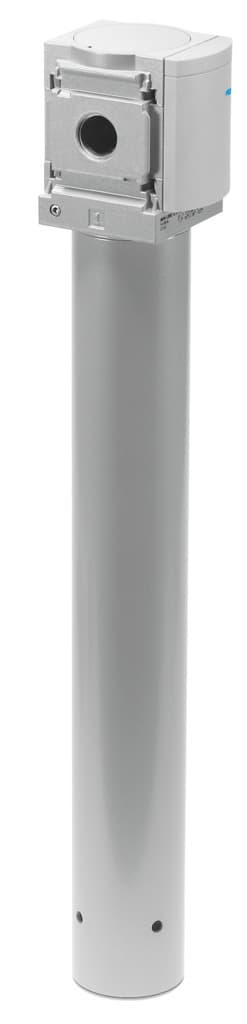

1The Festo MS6N-LDM1-1/4-P40 air dryer ensures optimal air quality by reducing pressure dew-point, making it ideal for various industrial applications.
2This air dryer features a compact design with a metal bowl, allowing for easy integration into your existing systems without taking up too much space.
3Equipped with a 1/4" NPT threaded port and connecting plates, the MS6N-LDM1-1/4-P40 offers versatile pneumatic connections for seamless integration.
4Rated for 400L/min (LPM) nominal flow rate, this air dryer is designed to handle high-volume air requirements efficiently.
5With a robust design and reliable operation, the Festo MS6N-LDM1-1/4-P40 ensures consistent performance in demanding industrial environments.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	6	Series	MS
Mounting position	Vertical +/- 5°	Structural design	Membrane dryer
Symbol	00991516	Operating pressure	3bar 12.5bar
Standard nominal flow rate	400l/min	Operating medium	Compressed air as per ISO 8573-1:2010 [1:4:2]
Information on operating and pilot media	Operation with oil lubrication not possible	Pressure dew point reduction	20K
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Storage temperature	-20°C 60°C	For use in the food industry	See supplementary material information
Air quality class at the output	Compressed air as per ISO 8573-1:2010 [1:3:2]	Temperature of medium	2°C 50°C
Ambient temperature	2°C 50°C	Product weight	1300g
Type of mounting	Optionally: Line installation With accessories	Pneumatic connection 1	1/4 NPT
Pneumatic connection 2	1/4 NPT	Note on materials	RoHS-compliant
Housing material	Die-cast aluminum	Material of bowl	Wrought aluminum alloy
Manufacturer ID	543658

Specifications may be subject to change without notice
