Product Model

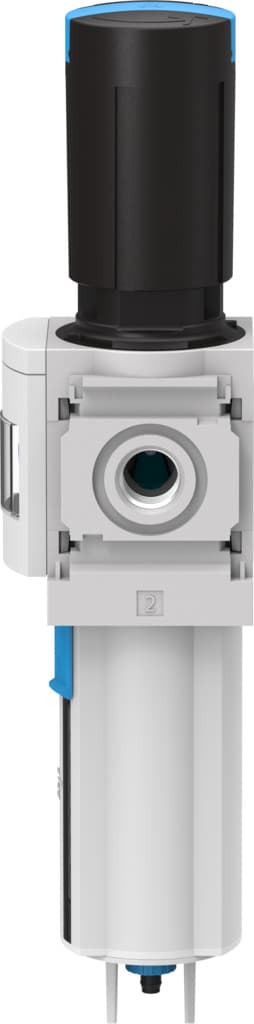

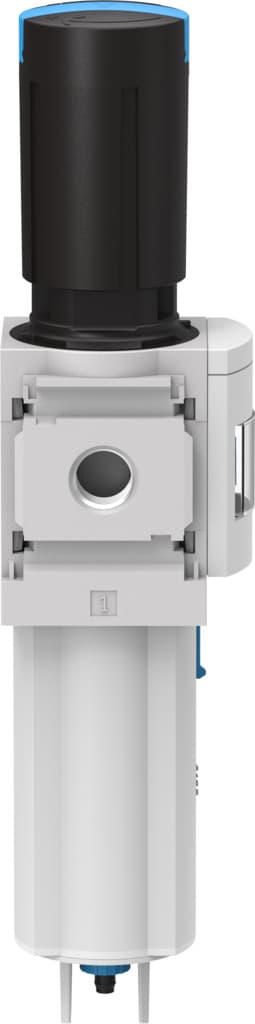

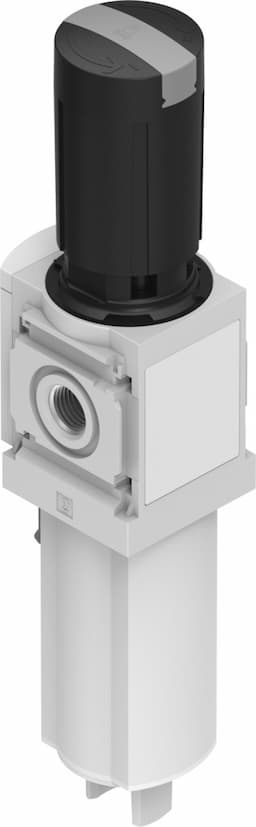

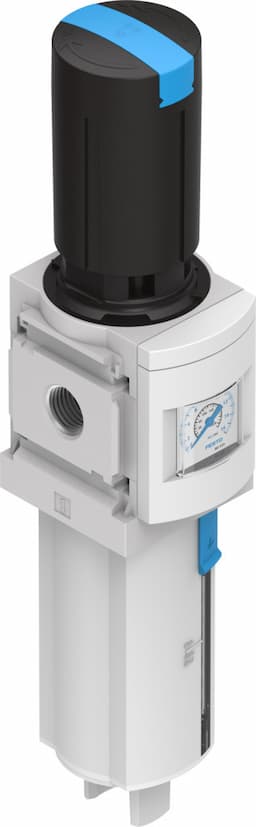

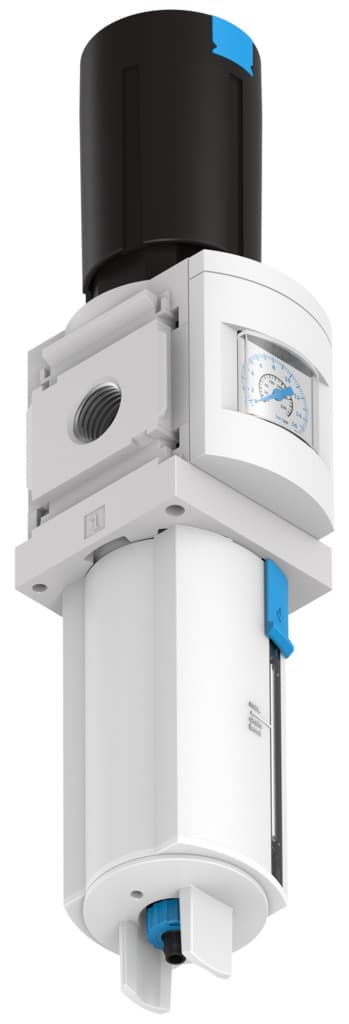

ms6-lfr-3/8-d7-cuv-as
Key Features
- 1High-Grade Filtration: The MS6-LFR-3/8-D7-CUV-AS features a 5 µm filtration grade, ensuring clean and reliable compressed air in accordance with ISO8573-1:2010 standards.
- 2Automatic Condensate Drain: Equipped with a fully automatic condensate drain, this filter regulator efficiently manages condensate, reducing maintenance and downtime.

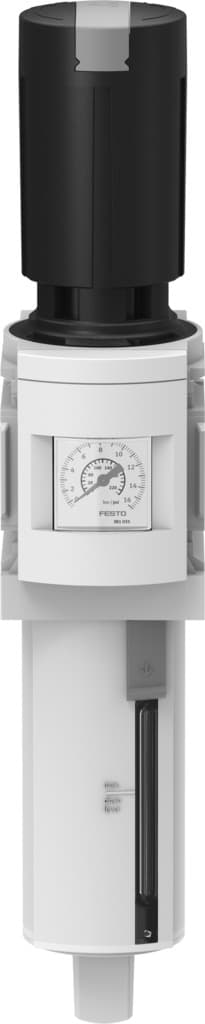

- 3Pressure Gauge Integration: The unit includes a pressure gauge for real-time monitoring of the operating pressure, ensuring safe and controlled operation within the specified range of 0.5 to 12 bar.
- 4Robust Design and Materials: Constructed from high-quality materials like aluminum die-cast housing and NBR seals, this filter regulator offers durability and resistance to corrosion.
- 5Versatile Installation Options: Designed for front panel installation or line installation with accessories, the MS6-LFR-3/8-D7-CUV-AS provides flexibility in mounting options to suit various application needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
| Grade of filtration | 5μm | Condensate drain | Fully automatic Manual, non-detenting |
| Structural design | Filter regulator with pressure gauge | Max. condensate volume | 38ml |
| Controller function | Outlet pressure constant With secondary exhausting | Bowl guard | Integrated as metal bowl guard |
| Degree of condensate separation | 75% | Symbol | 00991587 |
| Pressure gauge | with pressure gauge | Operating pressure | 2bar 12bar |
| Pressure regulation range | 0.5bar 12bar | Max. pressure hysteresis | 3.625psi |
| Standard nominal flow rate | 3500l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Pore size | 5μm |
| Product weight | 1087g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
| Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G3/8 |
| Note on materials | RoHS-compliant | Material of operator panel | PA POM |
| Seals material | NBR | Compressed air filter material | PE |
| Housing material | Die-cast aluminum | Diaphragm material | NBR |
| Material of bowl | Wrought aluminum alloy | Separating disc material | POM |
| Manufacturer ID | 530348 |
Specifications may be subject to change without notice
