Product Model

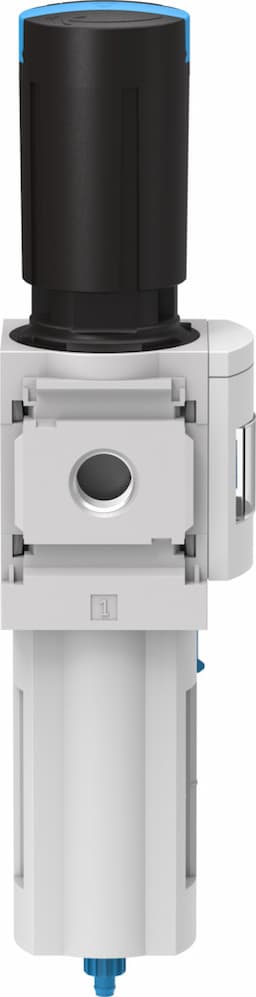

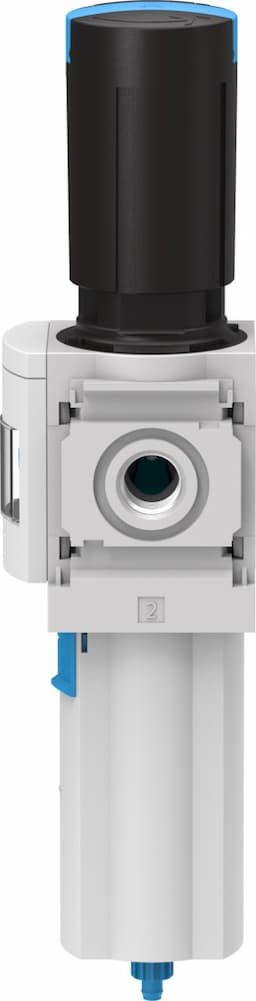

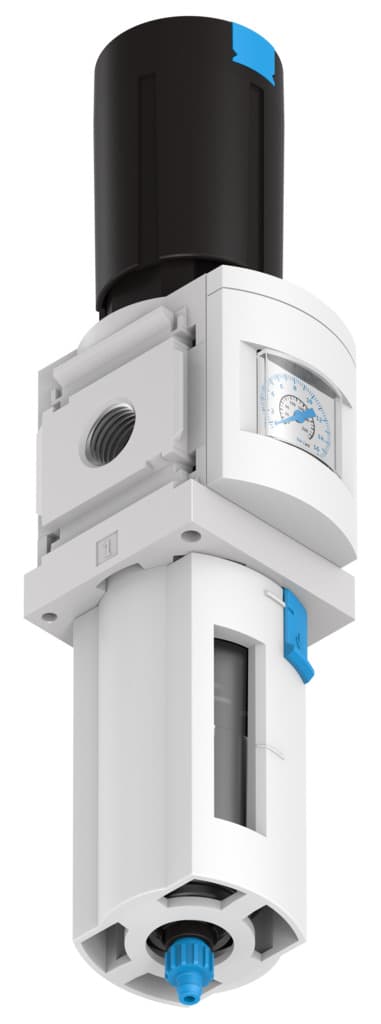

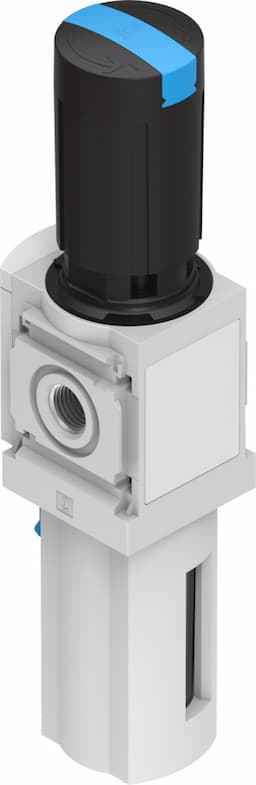

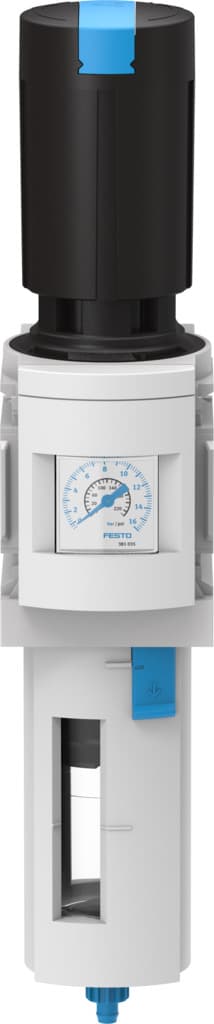

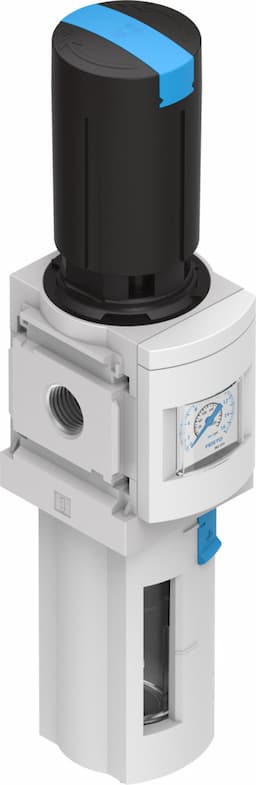

ms6-lfr-1/4-d6-erm-as
Key Features
- 1The Festo MS6-LFR-1/4-D6-ERM-AS filter regulator is designed to provide high-quality compressed air by filtering out particles as small as 40 µm, ensuring clean and reliable air supply for your industrial applications.
- 2This filter regulator features a rotary knob with detent, allowing for easy and precise adjustments. It also includes an actuator lock, ensuring that the settings remain in place even when accessories are attached.
- 3The MS6-LFR-1/4-D6-ERM-AS is versatile in its mounting options, accommodating vertical positions with an angle range of +/-5°. This flexibility makes it suitable for various installation scenarios in industrial settings.
- 4Festo's commitment to quality and reliability is evident in the MS6-LFR-1/4-D6-ERM-AS, which is part of the comprehensive product range offered by Festo. This ensures that you have access to a wide range of compatible accessories and spare parts.
- 5The Festo MS6-LFR-1/4-D6-ERM-AS filter regulator is part of a larger portfolio of pneumatic and electrical components, making it easy to integrate into your existing automation systems. This one-stop-shop approach simplifies procurement and reduces warehousing costs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Manually rotating |
| Structural design | Filter regulator with pressure gauge | Max. condensate volume | 38ml |
| Controller function | Outlet pressure constant With secondary exhausting | Bowl guard | Plastic bowl guard |
| Degree of condensate separation | 75% | Symbol | 00991589 |
| Pressure gauge | with pressure gauge | Operating pressure | 0.8bar 20bar |
| Pressure regulation range | 0.3bar 7bar | Max. pressure hysteresis | 3.625psi |
| Standard nominal flow rate | 2800l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Pore size | 40μm |
| Product weight | 875g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
| Note on materials | RoHS-compliant | Material of operator panel | PA POM |
| Seals material | NBR | Compressed air filter material | PE |
| Housing material | Die-cast aluminum | Diaphragm material | NBR |
| Material of bowl | PC | Separating disc material | POM |
| Manufacturer ID | 529200 |
Specifications may be subject to change without notice
