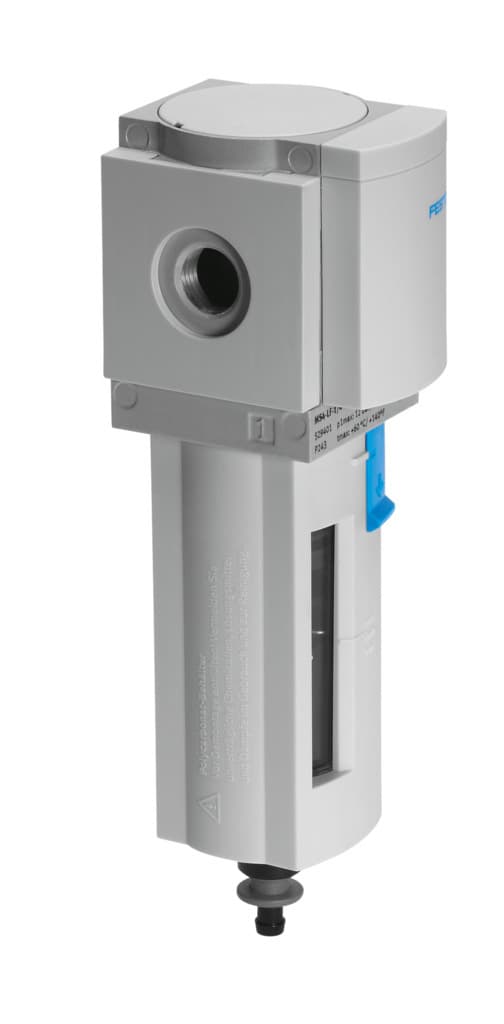

Product Model
ms6-lf
Key Features
- 1The Festo MS6-LF Series filters offer high flow rates with minimal pressure drop, ensuring efficient compressed air preparation.
- 2Available in 5 or 40µm filtration grades, these filters cater to various air purity requirements in pneumatic systems.
- 3Choose from manual, semi-automatic, or fully automatic condensate drain options to suit your specific needs.
- 4Operates within the pressure range of 0 to 20 bar, making it suitable for diverse industrial applications.
- 5Constructed with durable materials like die-cast aluminum and plastic bowl guards, ensuring long-lasting performance and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Mounting position | Vertical +/- 5° | Grade of filtration | 5μm 40μm |
| Condensate drain | Fully automatic Manual, non-detenting Manually rotating Semi-automatic | Structural design | Sinter filter with centrifugal separator |
| Bowl guard | Plastic bowl guard Integrated as metal bowl guard | Degree of condensate separation | 75% |
| Operating pressure | 0bar 20bar | Standard nominal flow rate | 2000l/min 4100l/min |
| Certification | c UL us - Recognized (OL) | CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) |
| UKCA marking (see declaration of conformity) | acc. to UK EX instructions | Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) |
| Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) | ATEX category gas | II 2G |
| ATEX category for dust | II 2D | Type of ignition protection for gas | Ex h IIC T6 Gb X |
| Type of (ignition) protection for dust | Ex h IIIC T60°C Db X | Explosive ambient temperature | -10°C <= Ta <= +60°C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-] Compressed air as per ISO 8573-1:2010 [7:9:-] Inert gas | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Type of mounting | Optionally: Line installation With accessories |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Compressed air filter material | PE | Housing material | Die-cast aluminum |
| Separating disc material | POM | Manufacturer ID | 527668 |
Specifications may be subject to change without notice
