Product Model
ms6-a-rmv-ipm-80
Key Features

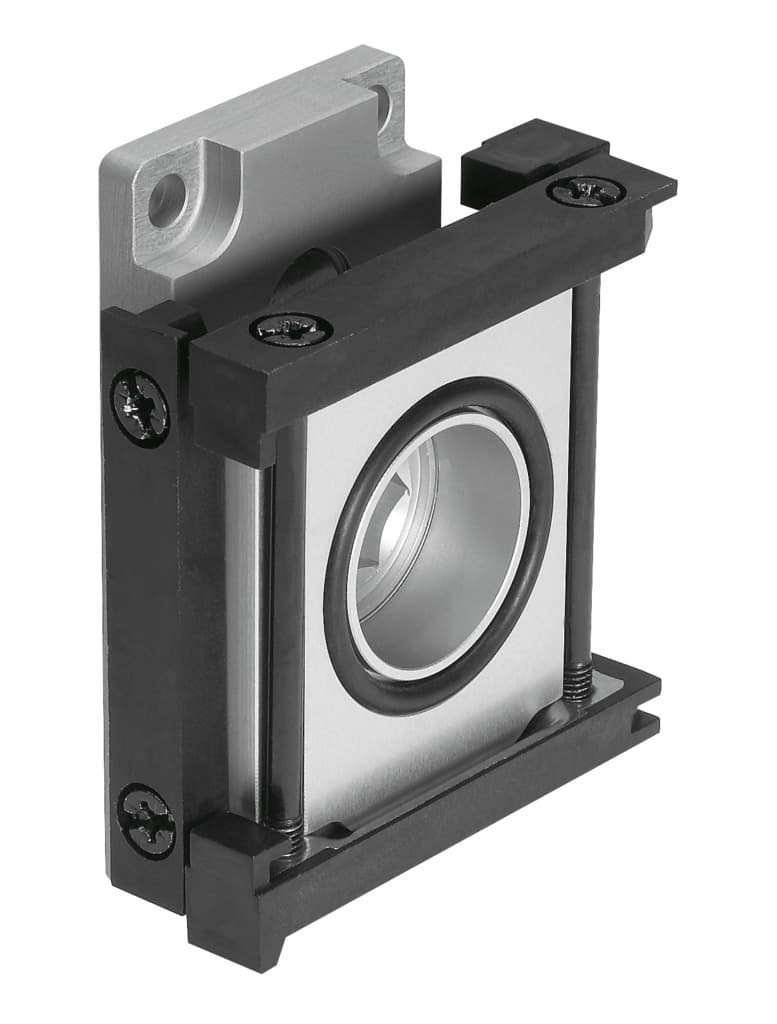

- 1The Festo MS6-A-RMV-IPM-80 branching module is designed to withstand moderate corrosion stress, ensuring durability in various industrial environments.
- 2This module operates within a medium temperature range of -10°C to 60°C, making it suitable for a wide range of applications.
- 3With a product weight of 236 grams, the MS6-A-RMV-IPM-80 is compact and easy to integrate into pneumatic systems.
- 4The module conforms to RoHS standards, ensuring compliance with environmental regulations and sustainability practices.
- 5Constructed with aluminum die-cast materials for the connecting plate, hollow bolt, and module connector, this branching module offers excellent corrosion resistance and mechanical strength.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Product weight | 236g |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Seals material | NBR | Hollow bolt material | Die-cast aluminum |
| Module connector material | Die-cast aluminum | Material of screws | Steel |
| Manufacturer ID | 543501 |
Specifications may be subject to change without notice
