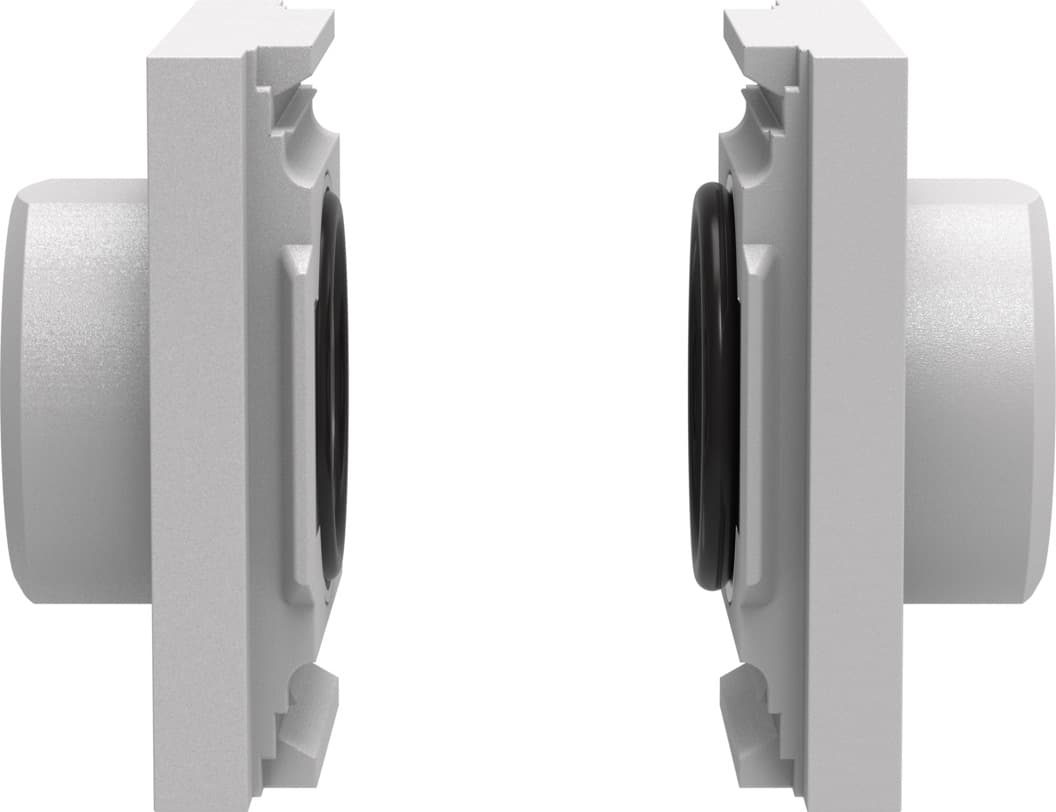

Product Model
ms6-agd
Key Features
- 1The Festo MS6-AGD Sub-Base Set boasts a corrosion resistance class of 2, ensuring moderate corrosion stress and durability in various environments.
- 2This sub-base set operates within a wide temperature range of -10°C to 60°C, making it versatile for various pneumatic applications.
- 3The product is made from copper and PTFE-free materials, conforming to RoHS standards, ensuring environmental safety.
- 4Equipped with G1/2 pneumatic connections on both ports, this sub-base set provides reliable and secure connections for your pneumatic systems.
- 5Weighing just 300 grams, the Festo MS6-AGD Sub-Base Set is compact and easy to integrate into your pneumatic setup, making it ideal for space-sensitive applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 6 | Series | MS |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Product weight | 300g |
| Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Seals material | NBR | Manufacturer ID | 526082 |
Specifications may be subject to change without notice
