Product Model

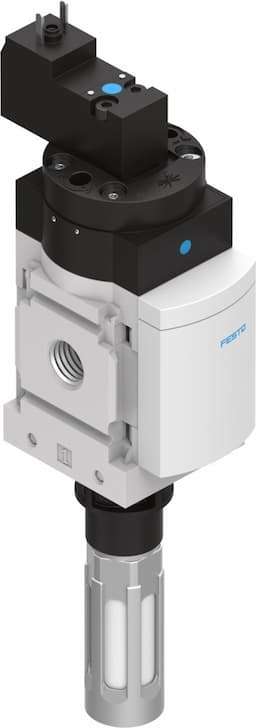

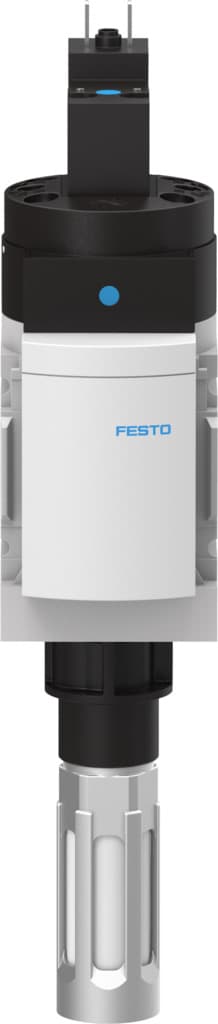

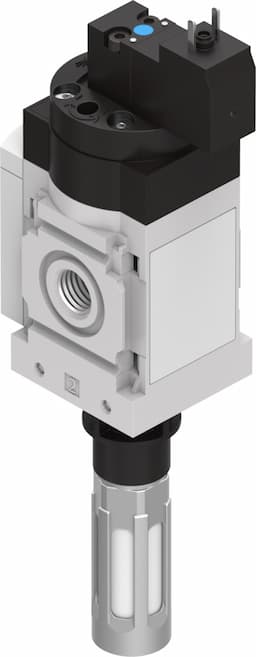

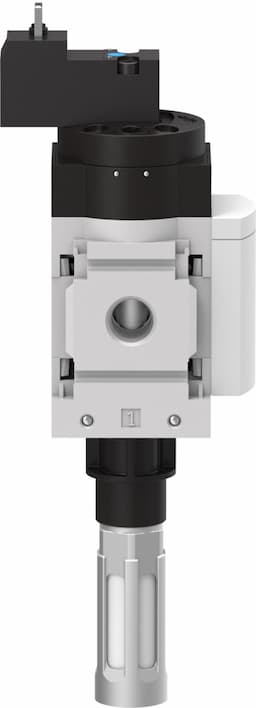

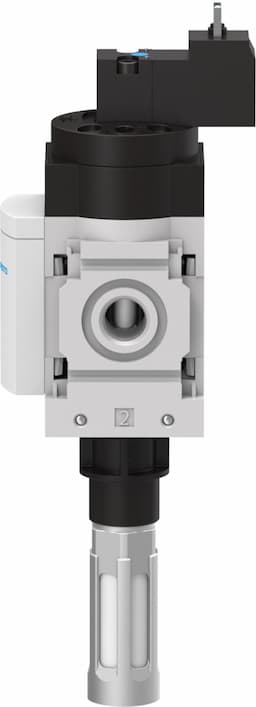

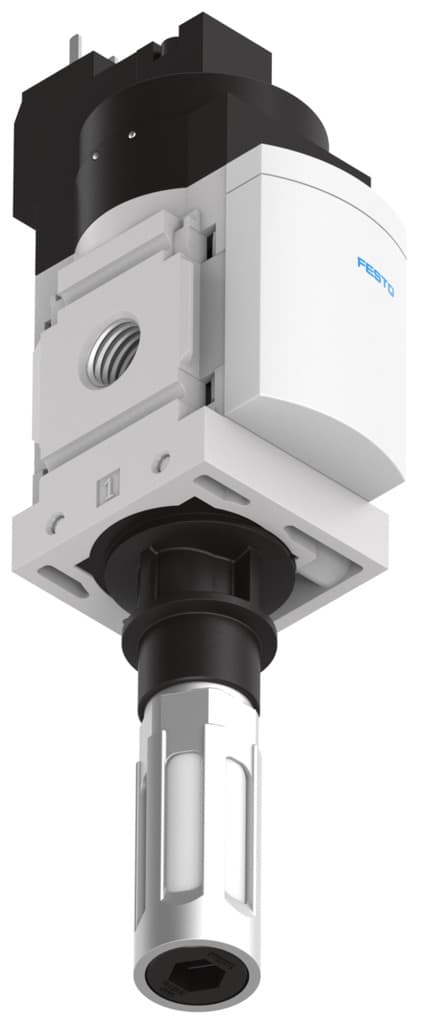

ms4n-ee-1/8-v110-s
Key Features
- 1The MS4N-EE-1/8-V110-S features a corrosion resistance class 2 according to Festo standard 940 070, ensuring it can withstand moderate corrosion in industrial environments.
- 2This electrically actuated shut off valve provides precise control over compressed air flow, making it suitable for a variety of industrial automation applications.
- 3With a service-life value B10 of 0.35 million cycles, the MS4N-EE-1/8-V110-S is a well-tried component designed to last in demanding industrial conditions.
- 4The valve is compatible with various coil parameters including V24, V110, and V230, allowing for flexible integration into different control systems.
- 5The valve is designed to comply with maximum vibration and shock loads, ensuring safe operation within the limits of technical specifications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Piston gate valve | Actuation type | Electrical |
| Exhaust air function | Without flow control option | Manual override | Detenting Non-detenting |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Symbol | 00991008 | Valve function | 3/2, closed, monostable |
| Operating pressure | 4bar 10bar | Lap | Overlap |
| C value | 4.5l/sbar | b-value | 0.5 |
| Standard nominal flow rate | 1000l/min | Duty cycle | 100% |
| Coil characteristics | 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 | Ambient temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Type of mounting | Optionally: Line installation With accessories |
| Mounting position | Any | Flow direction | Non-reversible |
| Product weight | 289g | Pneumatic connection 1 | 1/8 NPT |
| Pneumatic connection 2 | 1/8 NPT | Pneumatic connection 3 | G1/4 |
| Pilot air supply port | Internal | Electrical connection | Form C Plug as per DIN EN 175301-803 Rectangular design |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 538755 |
Specifications may be subject to change without notice
