Product Model
ms4-mvm
Key Features

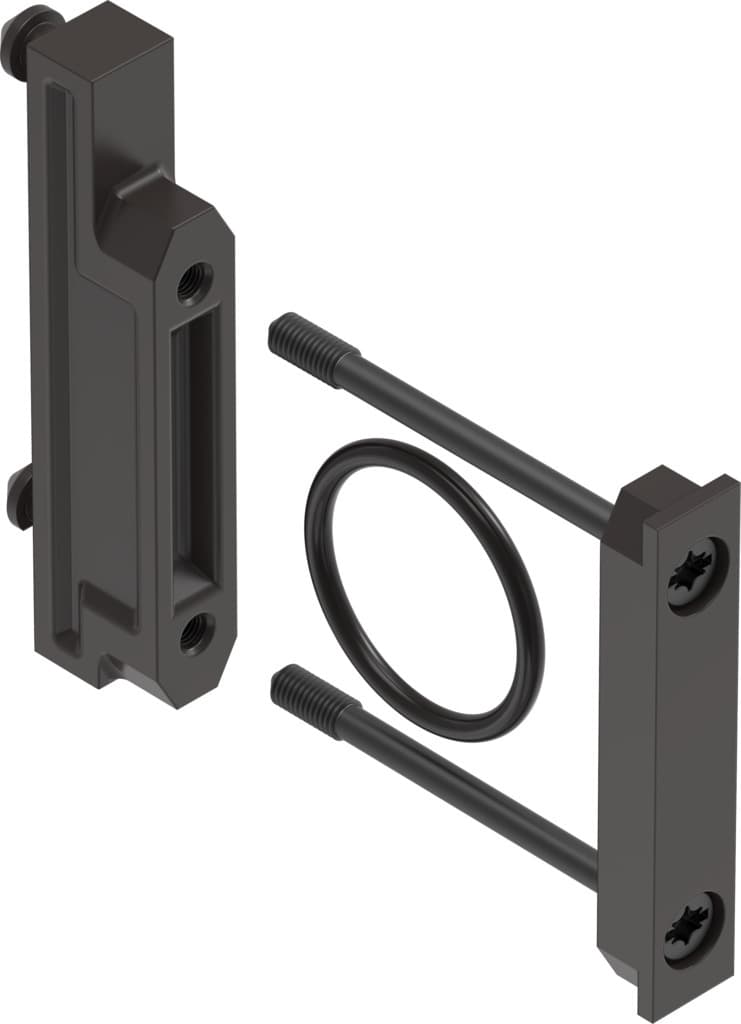

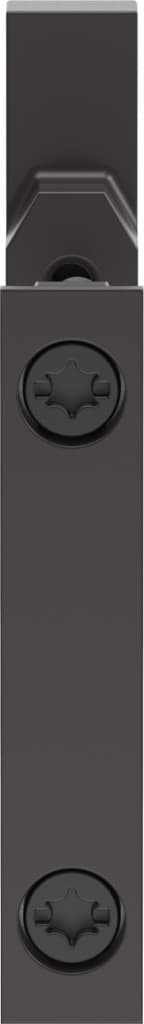

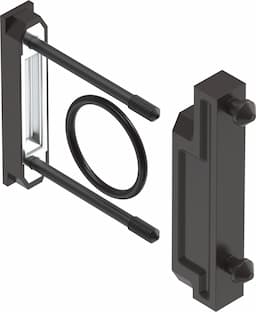

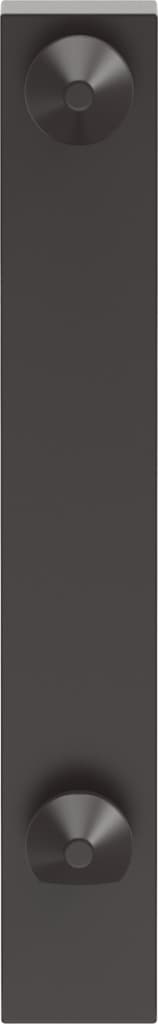

- 1The Festo MS4-MVM module connector is part of the MS series, known for its high corrosion resistance class (CRC) of 2, making it suitable for moderate corrosion stress environments.
- 2This module connector supports a wide temperature range of -10°C to 60°C, ensuring it can operate effectively in various industrial conditions.
- 3The MS4-MVM features a weight of 19 grams, making it lightweight and easy to handle during installation and maintenance.
- 4The module connector is made from durable materials such as POM (Polyoxymethylene) and steel, ensuring robust performance and long-lasting reliability.
- 5The Festo MS4-MVM is RoHS-compliant and meets VDMA24364-B1/B2-L standards, ensuring compliance with environmental regulations and industry standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Product weight | 19g |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Module connector material | POM Steel | Plate material | Die-cast aluminum |
| Material of screws | Steel | Manufacturer ID | 532800 |
Specifications may be subject to change without notice
