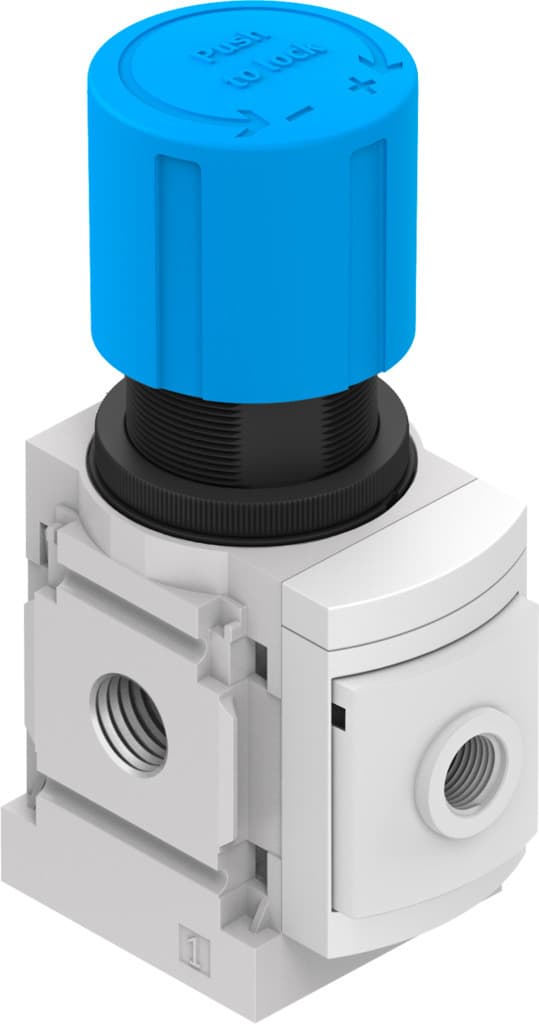

Product Model
ms4-lr-1/4-d7-a8
Key Features
- 1High flow rate performance with minimal pressure drop.
- 2Directly actuated diaphragm regulator for precise pressure control.
- 3Actuator lock with rotary knob for secure set values.
- 4Operating pressure range of 0.08 MPa to 1.4 MPa (0.8 bar to 14 bar).
- 5Compliant with ISO 8573-1:2010 and suitable for use with food products.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Actuator lock | Rotary knob with detent | Mounting position | Any |
| Structural design | Directly controlled diaphragm regulator | Controller function | Outlet pressure constant With secondary exhausting With return flow function |
| Symbol | 00991558 | Pressure gauge | G1/8 prepared |
| Operating pressure | 0.8bar 14bar | Pressure regulation range | 0.5bar 12bar |
| Max. pressure hysteresis | 3.625psi | Standard nominal flow rate | 1700l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Product weight | 225g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Material of operator panel | PA POM | Seals material | NBR |
| Housing material | Die-cast aluminum | Diaphragm material | NBR |
| Manufacturer ID | 610772 |
Specifications may be subject to change without notice
