Product Model

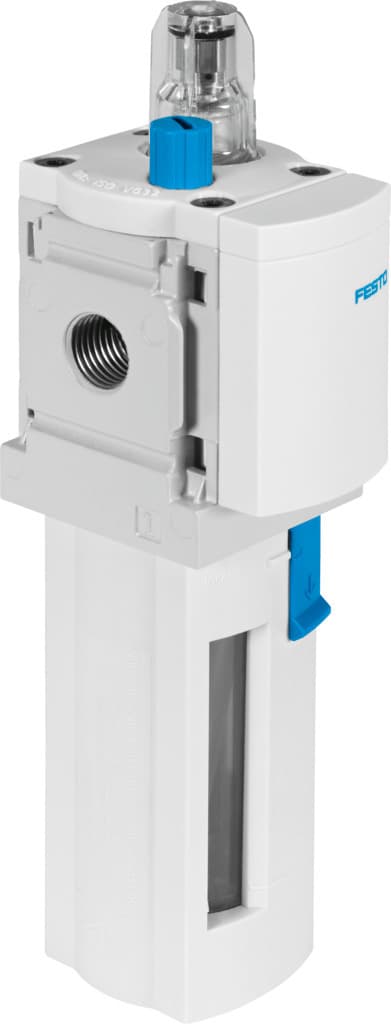

ms4-loe
Key Features
- 1The Festo MS4-LOE lubricator ensures optimal lubrication of air lines with a max. oil capacity of 30 cm³, maintaining system performance and longevity.
- 2Designed for vertical +/-5° mounting, this lubricator offers flexibility in installation, making it suitable for various industrial applications.
- 3Featuring a proportional standard mist lubricator design, it provides consistent and controlled lubrication, reducing wear and tear on pneumatic components.
- 4With a corrosion resistance class of CRC 2, this lubricator is designed to withstand moderate corrosion stress, ensuring reliable operation in harsh environments.
- 5The MS4-LOE is suitable for use with food and complies with ISO 8573-1:2010 [7:4:4] standards, making it an excellent choice for applications in the food processing industry.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Mounting position | Vertical +/- 5° | Structural design | Proportional standard oil mist lubricator |
| Max. oil capacity | 30cm3 | Bowl guard | Plastic bowl guard Integrated as metal bowl guard |
| Operating pressure | 1bar 12bar | Minimum flow rate for lubricator function | 40l/min |
| Standard nominal flow rate | 1100l/min 2200l/min | Certification | c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) | UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
| Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) | Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) |
| ATEX category gas | II 2G | ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex h IIC T6 Gb X | Type of (ignition) protection for dust | Ex h IIIC T60°C Db X |
| Explosive ambient temperature | -10°C <= Ta <= +60°C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
| Oil viscosity | ISO VG 32 | Ambient temperature | -10°C 60°C |
| Type of mounting | Optionally: Line installation With accessories | Note on materials | RoHS-compliant |
| Housing material | Die-cast aluminum | Material of bowl | Wrought aluminum alloy |
| Manufacturer ID | 527701 |
Specifications may be subject to change without notice
