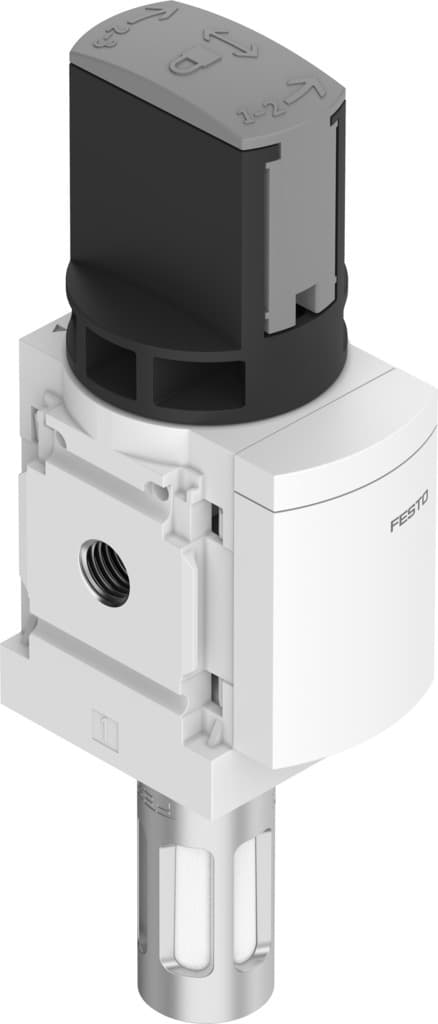

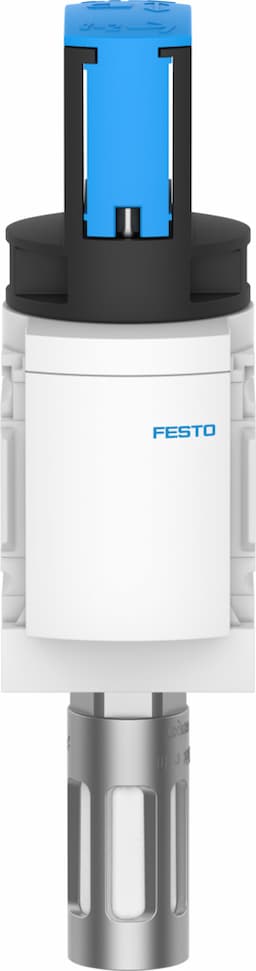

ms4-em1-1/8-s

Manufacturer

Festo

Key Features

1High Reliability: The MS4-EM1-1/8-S is designed to meet stringent specifications, ensuring consistent performance in demanding industrial environments.
2Manual Actuation: This valve is manually actuated, providing easy control and operation without the need for electrical components.
3Silencer Included: The valve comes with a built-in silencer, reducing noise levels and enhancing the overall working environment.
4Direct Pilot Control Mode: The MS4-EM1-1/8-S features a direct pilot control mode, allowing for precise control over the valve's operation.
5Non-Reversing Flow: The valve is designed for non-reversing flow, ensuring reliable operation and minimizing the risk of backflow.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Structural design	Rotary gate valve	Actuation type	Manual
Exhaust air function	Without flow control option	Type of control	Direct
Symbol	00991670	Valve function	3/2, bistable
Operating pressure	0bar 14bar	C value	4.6l/sbar
b-value	0.51	Standard nominal flow rate	1200l/min
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	Note on materials	RoHS-compliant
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Temperature of medium	-10°C 60°C
Ambient temperature	-10°C 60°C	For use in the food industry	See supplementary material information
Type of mounting	Optionally: Line installation With accessories	Mounting position	Any
Flow direction	Non-reversible	Product weight	210g
Pneumatic connection 1	G1/8	Pneumatic connection 2	G1/8
Pneumatic connection 3	Not ducted	Seals material	TPE-U(PU)
Housing material	Die-cast aluminum	Manufacturer ID	541263

Specifications may be subject to change without notice
