ms4-dl-1/8

Manufacturer

Festo

Key Features

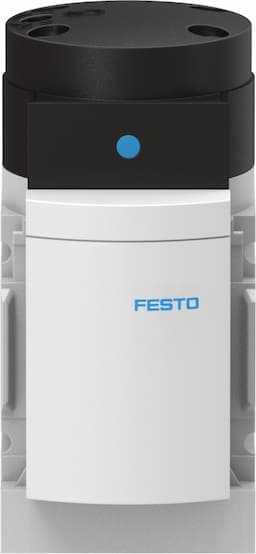

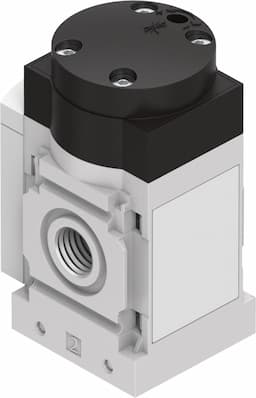

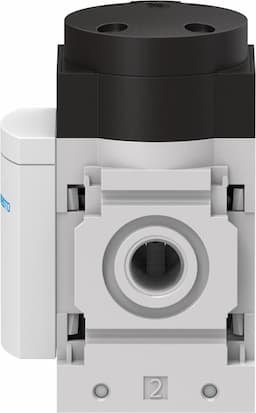

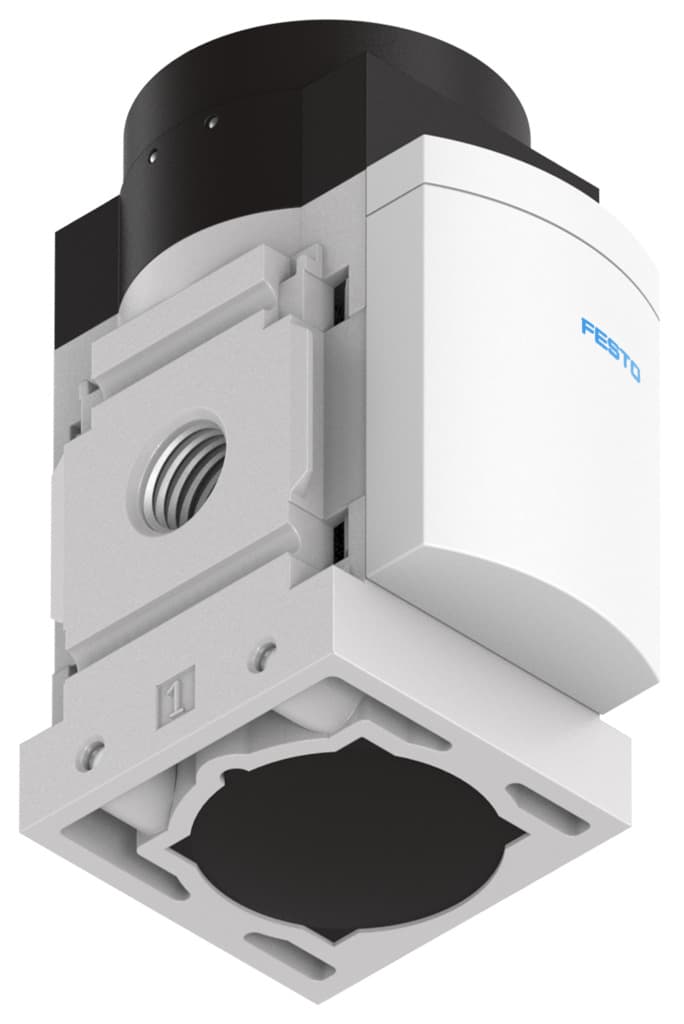

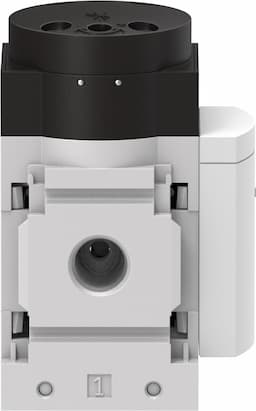

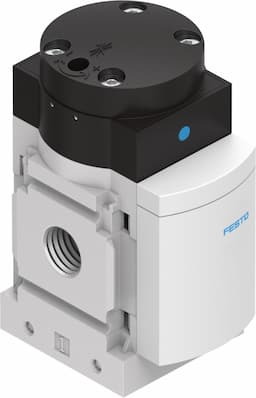

1The Festo MS4-DL-1/8 soft start valve is designed for pneumatic control systems, ensuring smooth and controlled airflow.
2With a maximum operating pressure of 14 bar and a standard nominal flow rate of 1000 l/min, it meets the demands of various industrial applications.
3This valve features a durable die-cast aluminum housing and NBR seals, providing reliable performance in harsh environments.
4The MS4-DL-1/8 valve is compatible with compressed air as per ISO 8573-1:2010 and has a moderate corrosion resistance class (CRC) of 2.
5The valve includes a mechanical spring reset method and is suitable for operating temperatures ranging from -10°C to 60°C, making it versatile for different industrial settings.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Exhaust air function	With flow control option	Actuation type	Pneumatic
Mounting position	Any	Manual override	None
Structural design	Piston seat	Reset method	Mechanical spring
Type of control	Direct	Pilot air supply port	External
Flow direction	Non-reversible	Symbol	00991513
Valve function	2/2	Operating pressure	4bar 14bar
b-value	0.5	C value	4.6l/sbar
Standard nominal flow rate	1000l/min	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	For use in the food industry	See supplementary material information
Temperature of medium	-10°C 60°C	Ambient temperature	-10°C 60°C
Product weight	213g	Type of mounting	Optionally: Line installation With accessories
Pneumatic connection 1	G1/8	Pneumatic connection 2	G1/8
Note on materials	RoHS-compliant	Seals material	NBR
Housing material	Die-cast aluminum	Manufacturer ID	529533

Specifications may be subject to change without notice
