Product Model
ms4-agb
Key Features

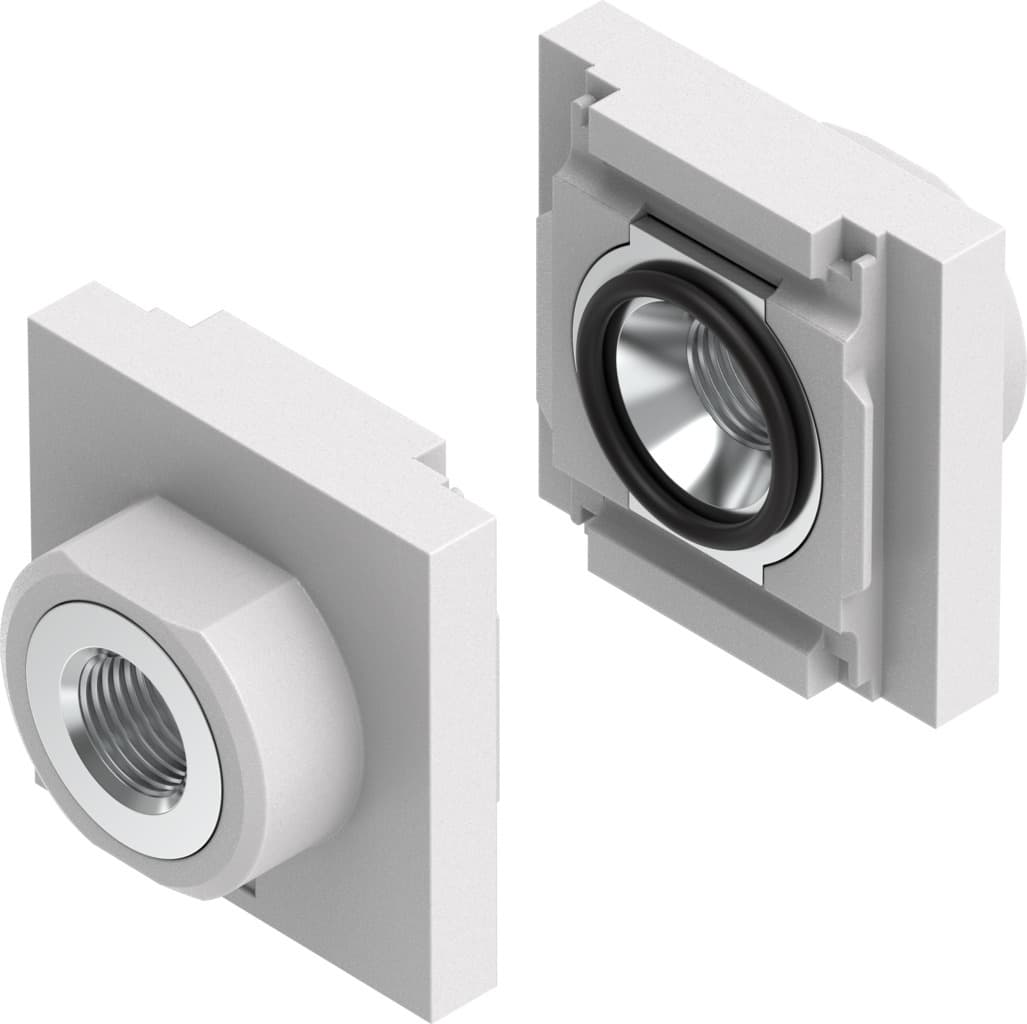

- 1The Festo MS4-AGB Sub-base-SET is constructed from die-cast aluminum, ensuring durability and compliance with RoHS standards for environmental safety.
- 2This sub-base features moderate corrosion resistance (CRC class 2), making it suitable for various industrial applications where moderate corrosion stress is present.
- 3The MS4-AGB supports a temperature range of -10°C to 60°C, allowing it to operate effectively in a wide range of environments.
- 4With pneumatic connections of G1/4 and G1/4, this sub-base offers versatile connectivity options for easy integration into pneumatic systems.
- 5The sub-base is designed with NBR seals, ensuring reliable and long-lasting performance in compressed air treatment applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Product weight | 128g |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Seals material | NBR | Manufacturer ID | 526069 |
Specifications may be subject to change without notice
