Product Model

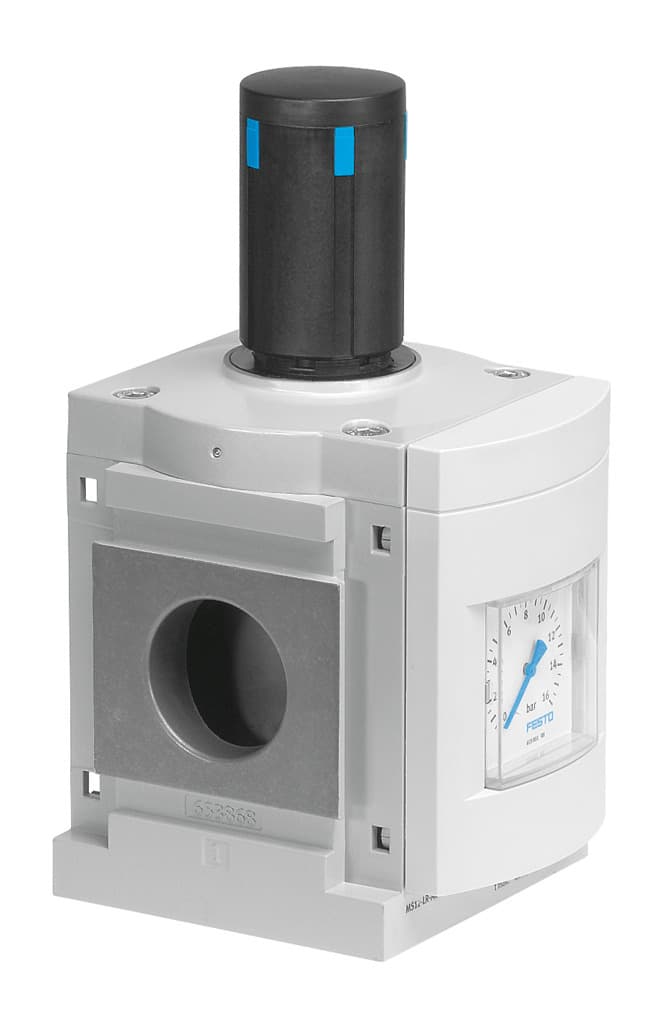

ms12n-lr
Key Features
- 1The Festo MS12N-LR pressure regulators provide excellent control characteristics with low hysteresis, ensuring precise pressure regulation in industrial applications.
- 2These regulators offer high flow rates, making them suitable for systems requiring significant air flow while maintaining consistent pressure.
- 3The MS12N-LR features a pilot-actuated diaphragm regulator, which operates without intrinsic air consumption, maximizing efficiency.
- 4The product includes three pressure regulation ranges (4.4–103 psi, 7.4–176 psi, and 7.4–235 psi), catering to various industrial needs.
- 5The regulators come with a rotary knob that can be locked using accessories, ensuring setting values are secured and maintained.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Series | MS |
| Actuator lock | Rotary knob with detent Rotary knob with integrated lock can be closed with accessories | Mounting position | Any |
| Structural design | Pilot-controlled diaphragm regulator | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Pressure gauge | with pressure gauge | Operating pressure | 0.8bar 21bar |
| Pressure regulation range | 0.15bar 16bar | Flow rate of secondary venting | 600l/min |
| Standard nominal flow rate | 12000l/min 22000l/min | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Type of mounting | Optionally: Line installation With mounting bracket |
| Covering material | PA | Note on materials | RoHS-compliant |
| Lower cover material | Wrought aluminum alloy | Seals material | NBR |
| Material of spring | Spring steel | Housing material | Die-cast aluminum |
| Diaphragm material | NBR | Valve tappet material | Wrought aluminum alloy NBR High-alloy stainless steel |
| Manufacturer ID | 535024 |
Specifications may be subject to change without notice
