Product Model
ms12n-frm
Key Features

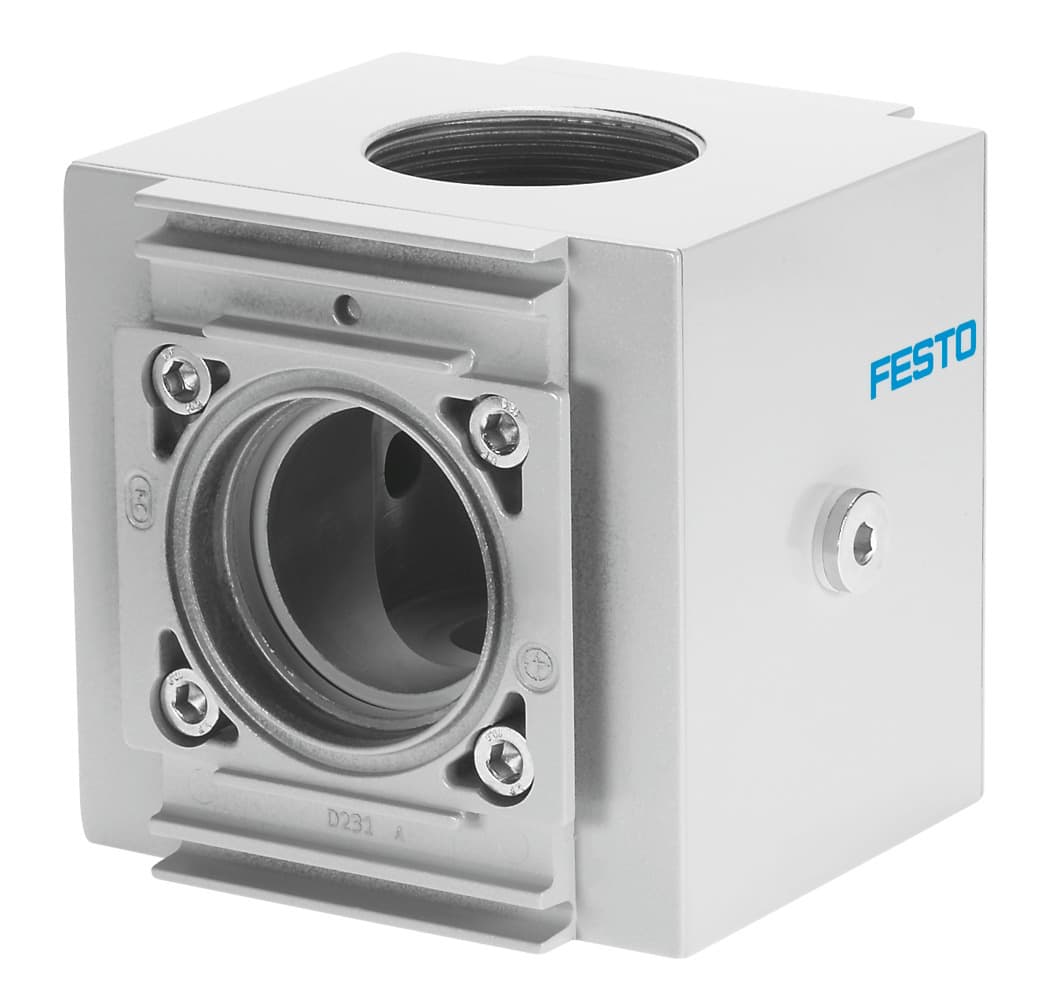

- 1The Festo MS12N-FRM-G branching module provides additional air outlets, allowing for the creation of separate pressure or air quality branches, enhancing system flexibility and efficiency.
- 2This module can be used as an individual device or attached to pressure sensors, offering versatility in its application and installation.
- 3With a corrosion resistance class of 2 according to Festo standard 940 070, the MS12N-FRM-G is moderately resistant to corrosion stress, ensuring durability in various industrial environments.
- 4The module supports flow rates of 882.5 to 1,482.6 SCFM, making it suitable for a wide range of pneumatic applications requiring high airflow.
- 5The Festo MS12N-FRM-G complies with international standards such as ISO 8573-1:2010 and VDMA24364-B2-L LABS (PWIS), ensuring it meets stringent quality and safety requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Structural design | Branching module |
| Symbol | 00991510 | Operating pressure | 0bar 20bar |
| Standard nominal flow rate in main flow direction 1 -> 2 | 25000l/min 42000l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -10°C 60°C | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Pneumatic connection 4 | 1 NPT |
| Housing material | Die-cast aluminum | Manufacturer ID | 535040 |
Specifications may be subject to change without notice
