Product Model

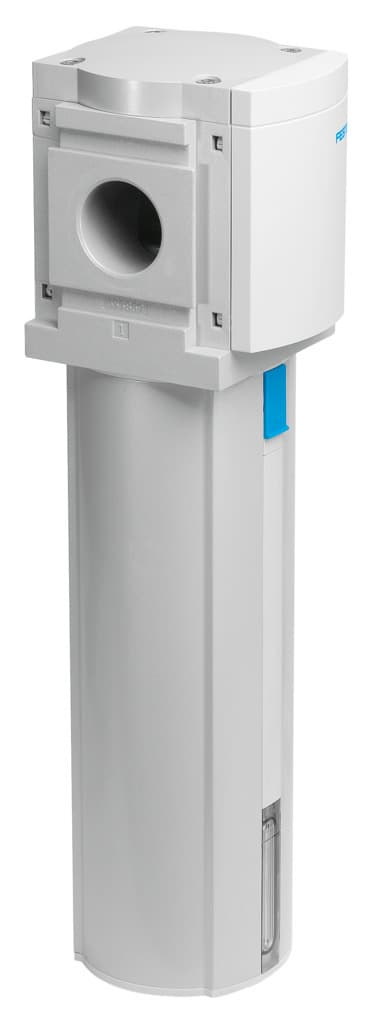

ms12-lfm-g-auv
Key Features
- 1The MS12-LFM-G-AUV features a 0.01 μm filtration grade, ensuring 99.9999% filter efficiency and capturing even the finest particles.
- 2This micro filter includes a fully automatic condensate drain, eliminating the need for manual intervention and ensuring continuous operation.
- 3Designed for use with compressed air as per ISO 8573-1:2010 [6:8:4], it also supports inert gases, making it versatile for various industrial applications.
- 4Built with die-cast aluminum housing and borosilicate fiber filter, this filter offers excellent corrosion resistance (CRC 2) and durability.
- 5The MS12-LFM-G-AUV can be mounted in-line or via a mounting bracket, allowing for flexible installation options and easy integration into existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Series | MS | Size | 12 |
| Structural design | Fiber filter | Grade of filtration | 0.01μm |
| Condensate drain | Fully automatic Manual, non-detenting | Symbol | 00991519 |
| Operating pressure | 2bar 12bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas |
| Information on operating and pilot media | Ester oil < 0.1mg/m3, according to ISO 8573-1:2010 [-:-:2] | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:7:2] |
| Filter efficiency | 99.9999% | Max. condensate volume | 400ml |
| Bowl guard | Integrated as metal bowl guard | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | 5°C 60°C |
| Ambient temperature | 6°C 60°C | Storage temperature | -10°C 60°C |
| Filter efficiency, fine particles | 99.995% | MPPS | 0.08μm |
| MPPS filter efficiency | 99.968% | Residual oil content | 0.01mg/m3 |
| Filter efficiency, oil aerosol | 99% | Type of mounting | Optionally: Line installation With mounting bracket |
| Mounting position | Vertical +/- 5° | Housing material | Die-cast aluminum |
| Covering material | PA | Compressed air filter material | Borosilicate fiber |
| Material of bowl | Wrought aluminum alloy | Inspection window material | PC |
| Seals material | NBR | Note on materials | RoHS-compliant |
| Product weight | 7000g | Manufacturer ID | 537154 |
Specifications may be subject to change without notice
