Product Model
ma-50-16-1/4-en
Key Features

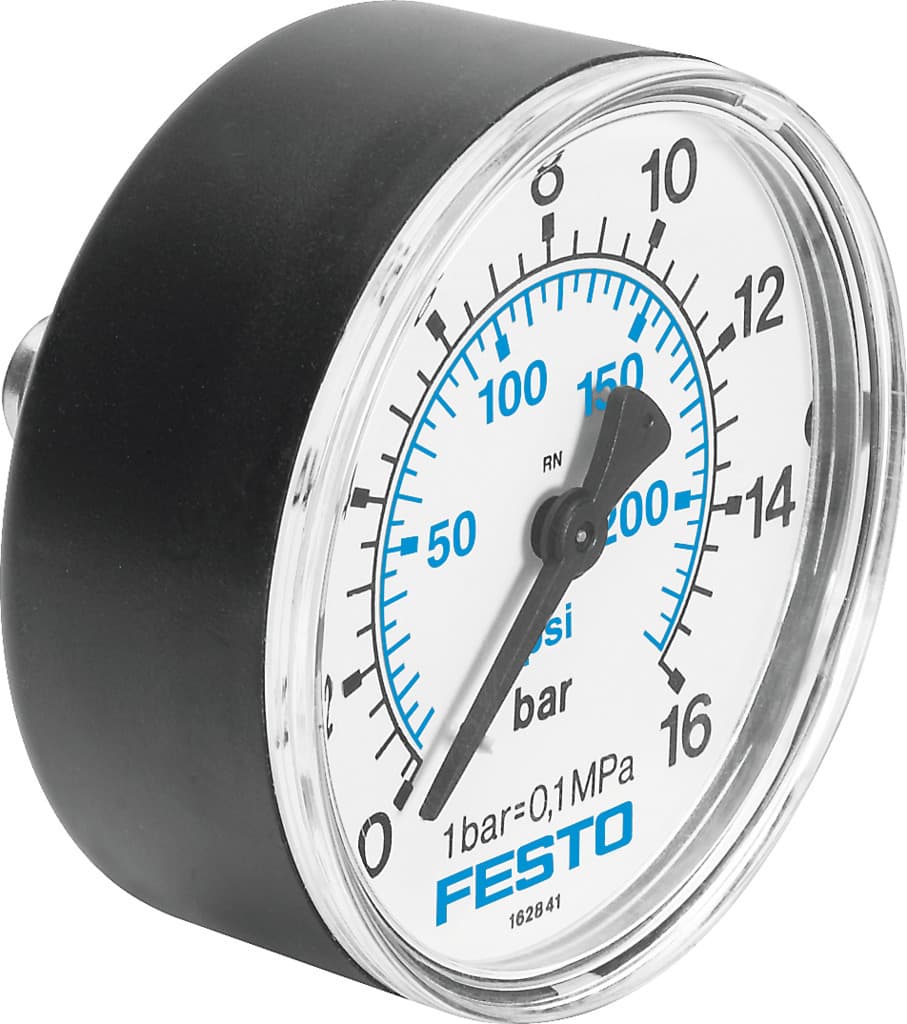

- 1The Festo MA-50-16-1/4-EN pressure gauge offers high accuracy and durability, making it ideal for various industrial applications.
- 2This gauge measures pressure from 0 to 16 bar, providing a wide range of measurement capabilities.
- 3With a direct mount or front mount with collar option, the MA-50-16-1/4-EN is easy to install in different settings.
- 4Built with a nickel-plated steel housing and black plastic sight glass, this gauge is robust and resistant to environmental conditions.
- 5The MA-50-16-1/4-EN meets DIN 16005/EN 837-1 standards for gauge class and DIN IEC 68-2-6/EN 837-1 standards for shock resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Display range | 0psi 232psi | Symbol | 00991463 |
| Conforms to standard | EN 837-1 | Pressure gauge nominal size | 50 |
| Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Structural design | Bourdon tube pressure gauge |
| Type of mounting | Line installation | Operating medium | Inert gas Neutral liquids |
| Information on operating and pilot media | No acetylene No oxygen | Operating pressure | 0psi 232psi |
| Intermittent load factor | 0.66 | Measurement accuracy class | 2.5 |
| Degree of protection | IP43 | Temperature of medium | -20°C 60°C |
| Ambient temperature | -20°C 60°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS-compliant | Connection position | Centered on rear side |
| Pneumatic connection | G1/4 | Materials in contact with the media | Brass |
| Material of screwed plug | Brass | Housing material | ABS |
| Inspection window material | PS | Housing colour | Black |
| Product weight | 70g | Scale | Double scale bar (au?en) psi (internal) |
| Manufacturer ID | 162839 |
Specifications may be subject to change without notice
