Product Model

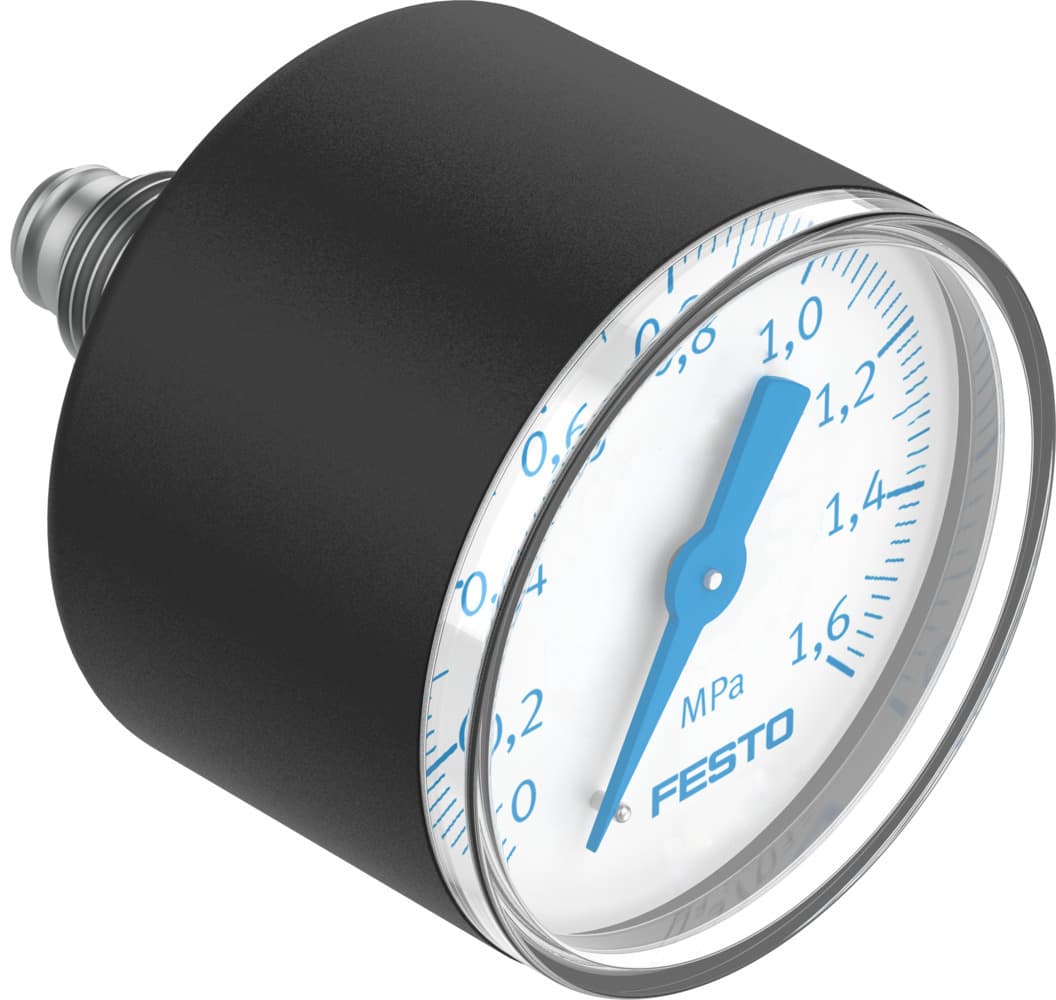

ma-40-1,6-g1/8-mpa
Key Features
- 1High Accuracy Measurement: The MA-40-1,6-G1/8-MPA pressure gauge offers a measurement accuracy class of 2.5, ensuring precise readings in a wide range of applications.
- 2Bourdon-Tube Design: Featuring a Bourdon-tube design, this pressure gauge provides reliable and consistent measurements, making it suitable for various industrial settings.
- 3Wide Operating Range: With an indicating range of 0 to 1.6 MPa, this gauge is versatile and can be used in applications requiring precise pressure monitoring.
- 4Robust Construction: Constructed from high-quality materials such as brass and ABS, the MA-40-1,6-G1/8-MPA is built to withstand harsh industrial environments.
- 5Compliance with Standards: Conforming to EN 837-1, this pressure gauge meets international standards for pressure measurement, ensuring reliability and consistency in your operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Display range | 0MPa 1.6MPa | Symbol | 00991463 |
| Conforms to standard | EN 837-1 | Pressure gauge nominal size | 40 |
| Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Structural design | Bourdon tube pressure gauge |
| Type of mounting | Line installation | Operating medium | Inert gas Neutral liquids |
| Information on operating and pilot media | No acetylene No oxygen | Operating pressure | 0psi 232psi |
| Intermittent load factor | 0.66 | Measurement accuracy class | 2.5 |
| Degree of protection | IP43 | Temperature of medium | -20°C 60°C |
| Ambient temperature | -20°C 60°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS-compliant | Connection position | Centered on rear side |
| Pneumatic connection | G1/8 | Materials in contact with the media | Brass |
| Material of screwed plug | Brass | Housing material | ABS |
| Inspection window material | PS | Housing colour | Black |
| Product weight | 60g | Scale | Single scale MPa (external) |
| Manufacturer ID | 192733 |
Specifications may be subject to change without notice
