Product Model

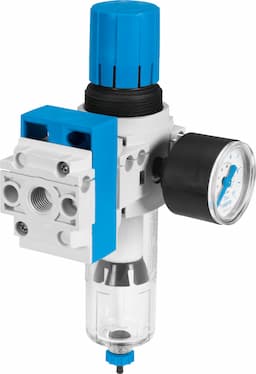

lfr-1/4-db-7-mini-kc
Key Features
- 1Compact and robust design for effective air preparation.
- 2Consistent and precise regulation of compressed air.
- 3Output pressure max. 7 bar with pressure gauge.
- 440 µ filtration grade for high air purity.
- 5Manual actuation type with optional padlock for secure operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Mini | Width | 108mm |
| Exhaust air function | Without flow control option | Series | DB |
| Actuation type | Manual | Actuator lock | Padlock (optional) Rotary knob with detent |
| Mounting position | Vertical +/- 5° | Grade of filtration | 40μm |
| Condensate drain | Manually rotating | Structural design | Shut off valve filter regulator |
| Max. condensate volume | 13ml | Controller function | Outlet pressure constant With secondary exhausting With return flow function Without primary pressure compensation |
| Symbol | 00995346 | Pressure gauge | with pressure gauge |
| Operating pressure | 21psi 145psi | Pressure regulation range MPa | 0.05MPa 0.7MPa |
| Pressure regulation range | 0.5bar 7bar | Pressure regulation range psi | 7.25psi 101.5psi |
| Max. pressure hysteresis | 0.5bar | Max. standard flow rate | 2500l/min |
| Standard nominal flow rate | 1900l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:9:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -5°C 50°C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] | Temperature of medium | -5°C 50°C |
| Ambient temperature | -5°C 50°C | Product weight | 245g |
| Type of mounting | Optionally: Line installation With through-hole With mounting bracket | Pressure gauge connection | G1/8 |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Seal material, shut off valve | FPM | Rotary knob material | POM |
| Compressed air filter material | PE | Housing material | PA-reinforced |
| Piston slide material | POM | Material of bowl | PC |
| Manufacturer ID | 8002799 |
Specifications may be subject to change without notice
