Product Model

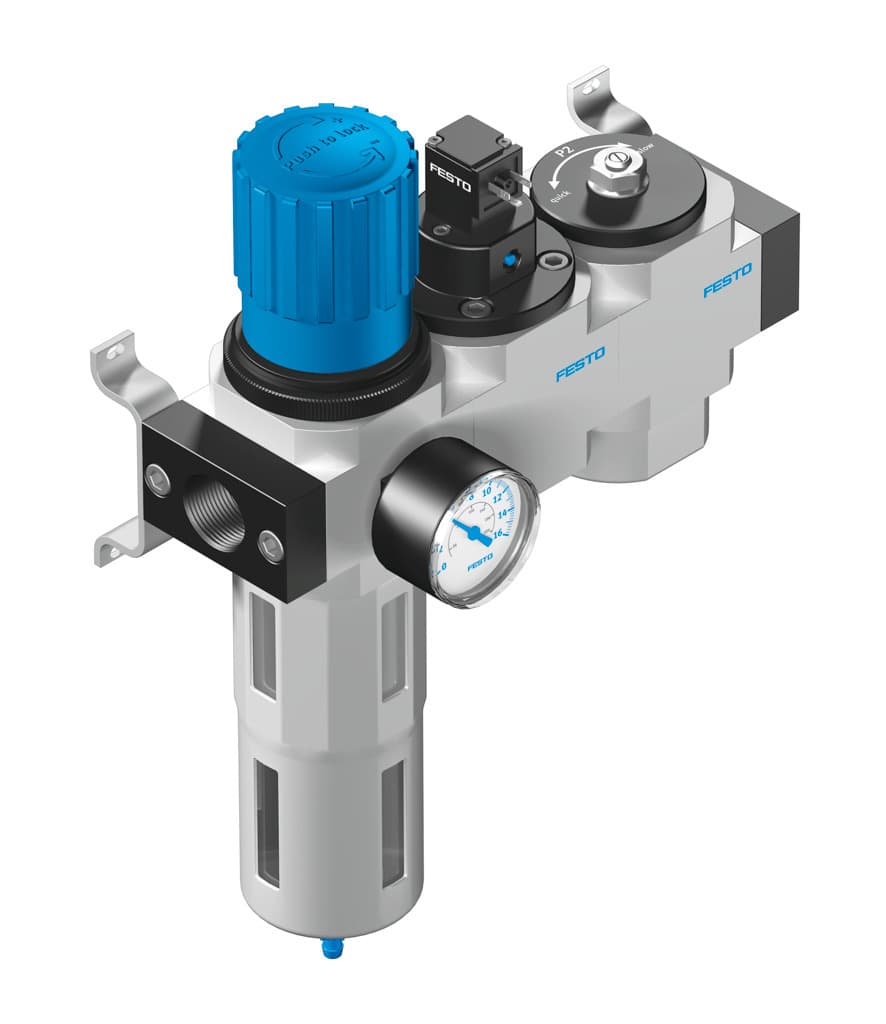

lfr-1/2-d-di-maxi-kd
Key Features
- 1The LFR-1/2-D-DI-MAXI-KD features a 40μm filtration grade, ensuring clean and reliable compressed air for your applications.
- 2This unit offers a maximum operating pressure of 16 bar, allowing for precise control over your compressed air system.
- 3Equipped with an automatic condensate drain, the LFR-1/2-D-DI-MAXI-KD minimizes downtime and ensures continuous operation.
- 4Designed for vertical mounting with a ±5° angle tolerance, this unit provides flexibility in installation and setup.
- 5The LFR-1/2-D-DI-MAXI-KD meets ISO 8573-1:2010 standards for compressed air quality and ISO 1179-1 and ISO 228-1 for dimensional accuracy.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Maxi | Series | D |
| Actuator lock | Rotary knob with detent | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Manually rotating |
| Structural design | Shut off valve Filter regulator with pressure gauge Safety start-up valve | Max. condensate volume | 43ml |
| Bowl guard | Metal bowl guard | Symbol | 00991766 |
| Pressure gauge | with pressure gauge | Operating pressure | 43.5psi 232psi |
| Pressure regulation range MPa | 0.25MPa 1.2MPa | Pressure regulation range | 2.5bar 12bar |
| Pressure regulation range psi | 36.25psi 174psi | Standard nominal flow rate | 3000l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] Inert gas | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Product weight | 3300g | Type of mounting | Optionally: Line installation With accessories |
| Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
| Housing material | Die-cast zinc | Material of bowl | PC |
| Manufacturer ID | 192443 |
Specifications may be subject to change without notice
