Product Model

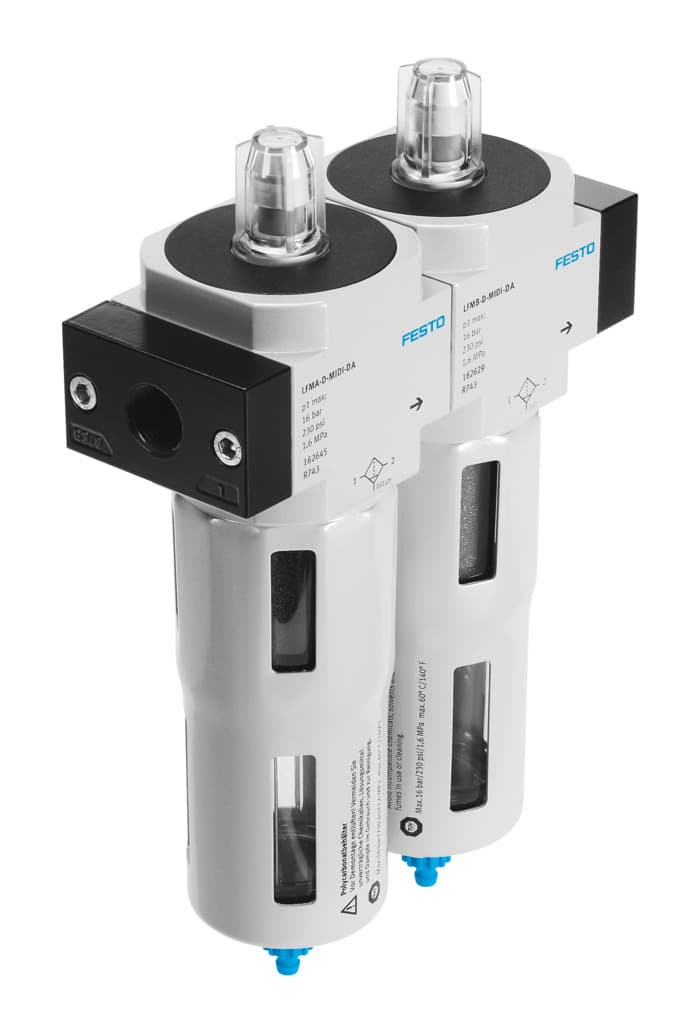

lfmba-1/2-d-midi-da-a
Key Features
- 1The Festo LFMBA-1/2-D-MIDI-DA-A offers a high filtration efficiency of 99.9999%, ensuring clean and reliable air supply for your applications.
- 2This filter features a 0.01 μm filtration grade, capturing even the smallest contaminants to maintain air purity.
- 3Designed for use with compressed air and inert gases, the LFMBA-1/2-D-MIDI-DA-A meets ISO 8573-1:2010 standards for air purity.
- 4The filter includes a manually rotating condensate drain and a metal bowl guard for easy maintenance and protection.
- 5With a compact Midi size and vertical +/-5° mounting position, the LFMBA-1/2-D-MIDI-DA-A is versatile and easy to integrate into various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Midi | Series | D |
| Mounting position | Vertical +/- 5° | Grade of filtration | 0.01μm |
| Filter efficiency | 99.9999% | Condensate drain | Fully automatic |
| Structural design | Fiber filter | Max. condensate volume | 43ml |
| Bowl guard | Metal bowl guard | Symbol | 00991530 |
| Operating pressure | 1.5bar 12bar | Operating medium | Compressed air as per ISO 8573-1:2010 [6:8:4] Inert gas |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:7:2] Inert gas |
| Temperature of medium | 1.5°C 60°C | Residual oil content | 0.01mg/m3 |
| Ambient temperature | -10°C 60°C | Product weight | 1429g |
| Type of mounting | Line installation With accessories | Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 | Note on materials | RoHS-compliant |
| Compressed air filter material | Borosilicate fiber | Housing material | Die-cast zinc |
| Material of bowl | PC | Manufacturer ID | 532878 |
Specifications may be subject to change without notice
