Product Model
dpa-100-10-crvzs20
Key Features
- 1The Festo DPA-100-10-CRVZS20 offers a maximum output pressure of 10bar (145psi), making it suitable for demanding compressed air applications.

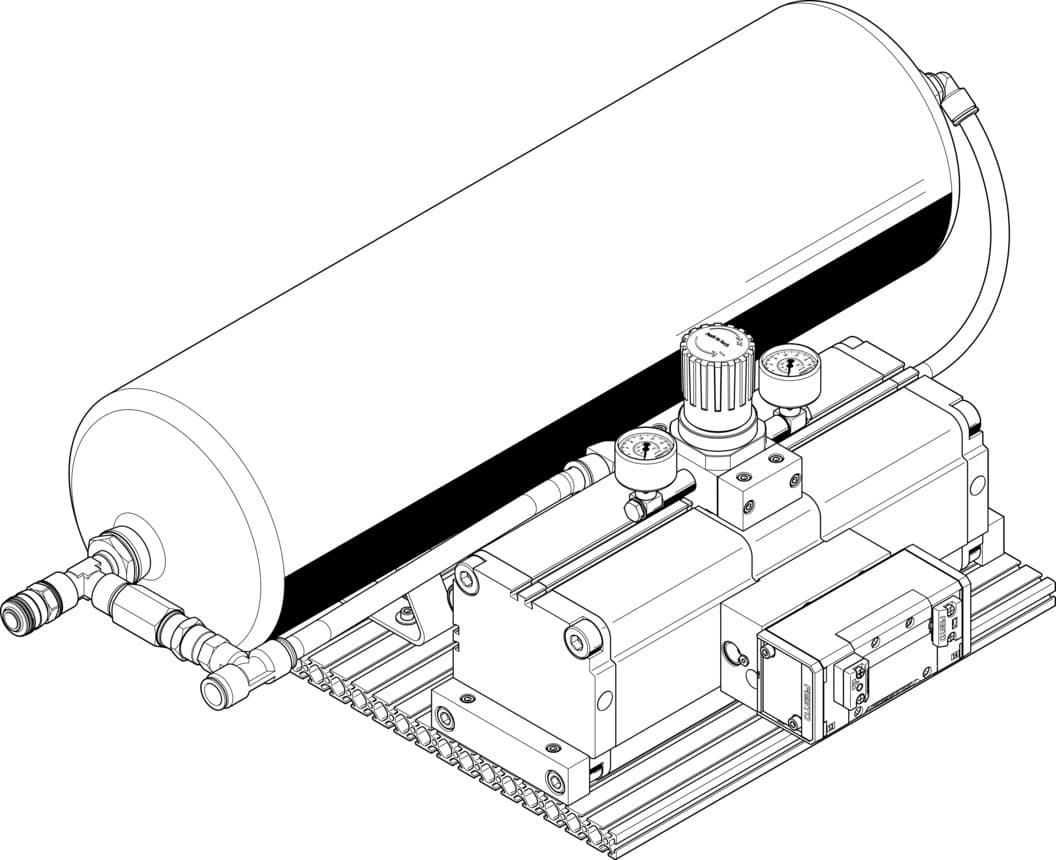

- 2This pressure booster features a twin-piston design with an air reservoir, ensuring efficient operation and reliable performance.
- 3Made from high-alloy stainless steel, the DPA-100-10-CRVZS20 is durable and resistant to corrosion, meeting VDMA24364-B1/B2-L and ISO 8573-1:2010 standards.
- 4With a condensate drain underneath and pneumatic connections (QS-16, KD4, and silencer), installation is straightforward and hassle-free.
- 5The product is CE marked and compliant with EU Pressure Equipment Directive, ensuring it meets all necessary safety and regulatory requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Piston diameter | 100 mm | Volume | 20 l |
| Mounting position | Condensate drain downwards | Structural design | Twin-piston pressure intensifier with air reservoir with pressure gauge with non-return valve |
| Symbol | 00991432 | Pressure gauge | with pressure gauge |
| Output pressure 2 | 58psi 145psi | Outlet pressure 2 | 4bar 10bar |
| Operating pressure | 29psi 116psi | Pressure regulation range MPa | 0.4MPa 1MPa |
| Pressure regulation range | 4bar 10bar | Pressure regulation range psi | 58psi 145psi |
| Inlet pressure 1 | 2bar 8bar | Inlet pressure 1 MPa | 0.2MPa 0.8MPa |
| Inlet pressure 1 psi | 29psi 116psi | CE marking (see declaration of conformity) | as per EU pressure equipment directive |
| UKCA marking (see declaration of conformity) | according to UK regulations for pressure equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:3:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | 5°C 60°C |
| Ambient temperature | 5°C 60°C | Max. tightening torque for condensate drain | 27Nm |
| Product weight | 30000g | Type of mounting | With slot nuts |
| Pneumatic connection 1 | QS-16 | Pneumatic connection 2 | KD4 |
| Pneumatic connection 3 | Pneumatic muffler | Note on materials | RoHS-compliant |
| Air reservoir material | High-alloy stainless steel | Manufacturer ID | 552936 |
Specifications may be subject to change without notice
