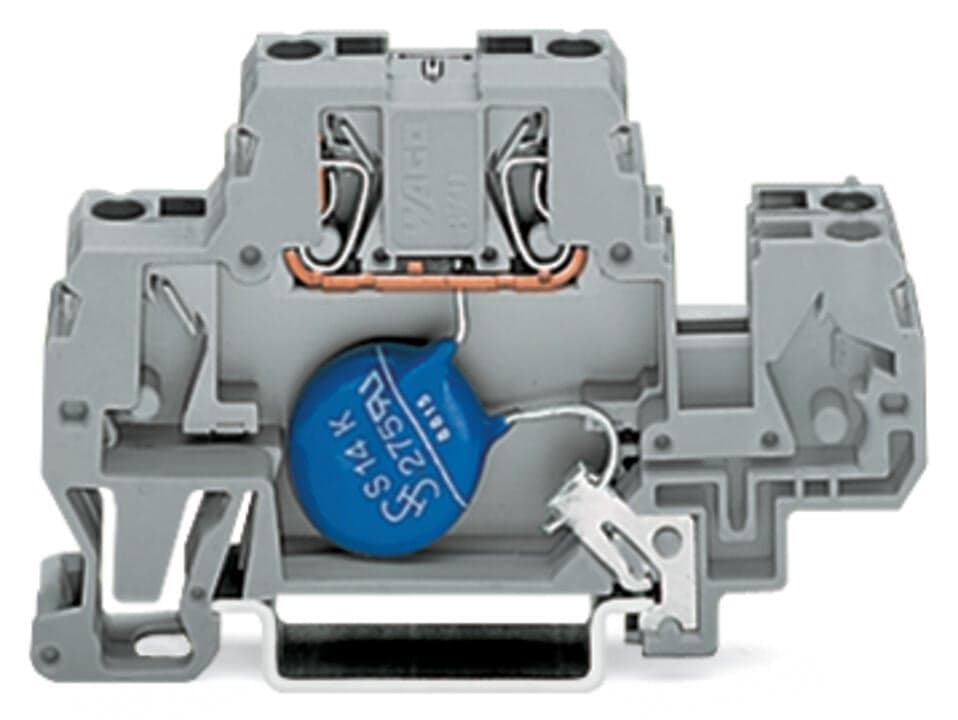

Product Model
870-523/281-586
Key Features
- 1Double-deck design for increased connection points
- 2Integrated varistor for overvoltage protection
- 3DIN-rail mounting compatible (35 x 15 and 35 x 7.5 mm)
- 4Rated for 24 VAC and 20 A current
- 5Gray color with CAGE CLAMP® for secure connections
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal operating voltage | AC?24?V | Maximum continuous voltage | AC?30?V |
| Rated continuous current | 20A | Nominal discharge current (8/20?μs) (line) | 300?A |
| Discharge current (max.) | 1kA | Protection level (8/20?μs) | ≤?AC 93?V |
| Capacitance | ≤?3.5?nF | Connections (number) | 2 |
| Connection technology | CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
| Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Width | 10?mm?/ 0.394?inches |
| Height | 70 mm / 2.756 inches | Depth from upper-edge of DIN-rail | 40 mm / 1.575 inches |
| Mounting type | DIN-35 rail | Color | gray |
| Insulation material (main housing) | Polyamide (PA66) | Material group | I |
| Flammability class per UL94 | V0 | Fire load | 0.257MJ |
| Weight | 12.1g | Processing temperature | -35 … +85?°C |
| Product Group | 16 (Rail Mounted Terminal Blocks with CCC) | eCl@ss 10.0 | 27-14-11-27 |
| eCl@ss 9.0 | 27-14-11-27 | ETIM 9.0 | EC000903 |
| ETIM 8.0 | EC000903 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4050821868378 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
