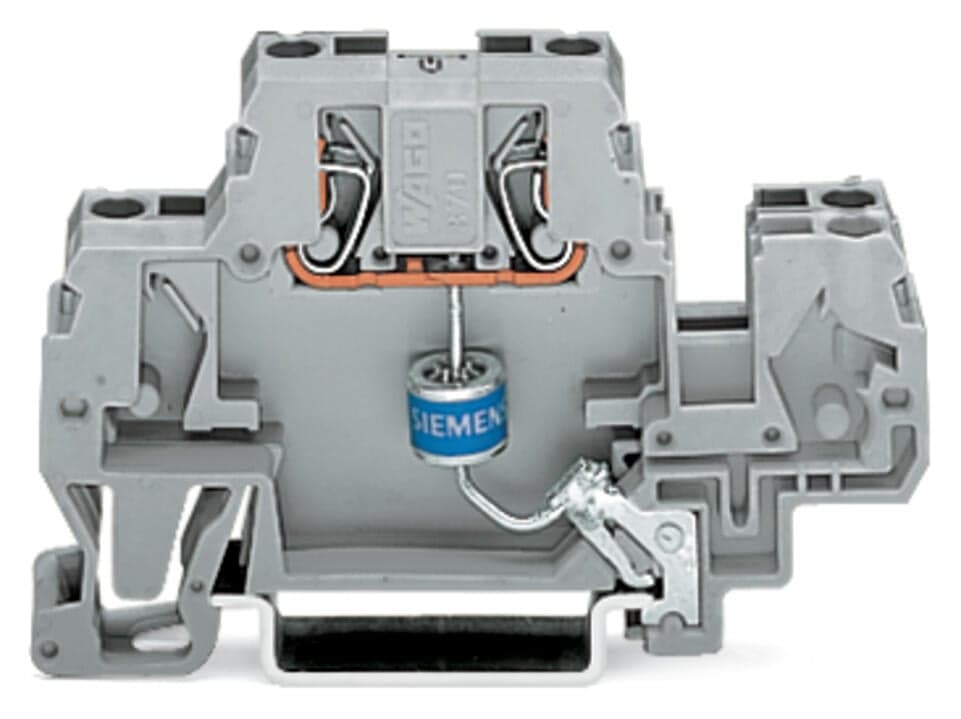

Product Model
870-523/281-580
Key Features
- 1Built with robust materials for long-lasting performance.
- 2Protects against electrical surges and spikes.
- 3Easy and secure wire connections.
- 4Conveniently mountable on DIN-35 rail systems.
- 5Handles up to 20A continuous current.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal operating voltage | AC/DC?115?V | Maximum continuous voltage | AC?180?V?/ DC?230?V |
| Rated continuous current | 20A | Nominal discharge current (8/20?μs) (line) | 5?kA |
| Protection level (8/20?μs) | ≤?AC 650?V | Capacitance | ≤?2?pF |
| Connections (number) | 2 | Connection technology | CAGE CLAMP? |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG | Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches |
| Width | 10?mm?/ 0.394?inches | Height | 70 mm / 2.756 inches |
| Depth from upper-edge of DIN-rail | 40 mm / 1.575 inches | Mounting type | DIN-35 rail |
| Color | gray | Insulation material (main housing) | Polyamide (PA66) |
| Material group | I | Flammability class per UL94 | V0 |
| Fire load | 0.257MJ | Weight | 12.2g |
| Processing temperature | -35 … +85?°C | Product Group | 16 (Rail Mounted Terminal Blocks with CCC) |
| eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
| ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454198503 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
