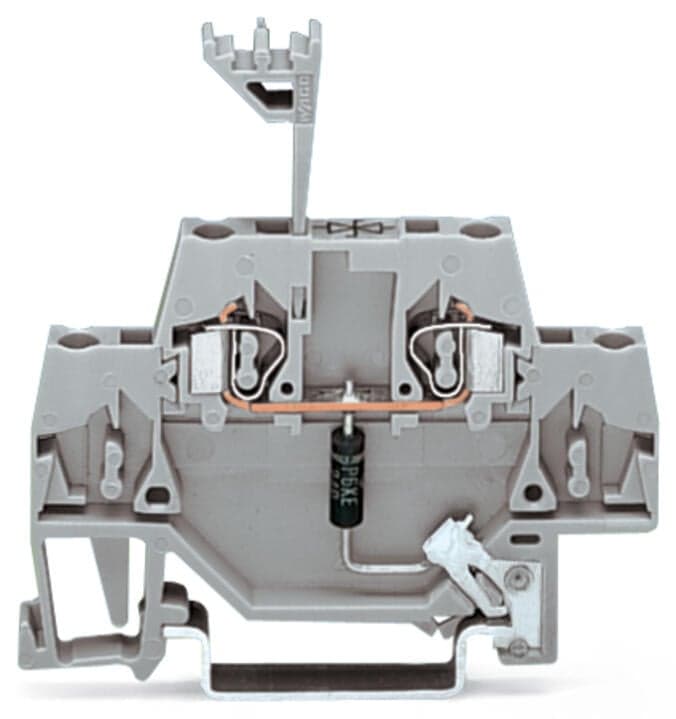

Product Model
280-502/281-603
Key Features
- 1Directly mounts to DIN rail for easy installation.
- 2Safeguards against overvoltage with a built-in P6KE68C TVS diode.
- 3Supports up to 20A of current for robust electrical connections.
- 4Utilizes CAGE CLAMP spring connections for secure and reliable wiring.
- 5Gray, double-deck terminal block with end plate, suitable for various DIN rail sizes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal operating voltage | DC?48?V | Maximum continuous voltage | DC?58?V |
| Rated continuous current | 20A | Nominal discharge current (10/1000?μs) (line) | 6.5?A |
| Protection level (10/1000?μs) | ≤?DC 92?V | Capacitance | ≤?630?pF |
| Connections (number) | 2 | Connection technology | CAGE CLAMP? |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 5?mm?/ 0.197?inches |
| Height | 64 mm / 2.52 inches | Depth from upper-edge of DIN-rail | 58.5 mm / 2.303 inches |
| Design | with direct connection to DIN-rail | Mounting type | DIN-35 rail |
| Color | gray | Insulation material (main housing) | Polyamide (PA66) |
| Material group | I | Flammability class per UL94 | V0 |
| Fire load | 0.246MJ | Weight | 8.2g |
| Processing temperature | -35 … +85?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
| ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332225052 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
Specifications may be subject to change without notice
