Product Model
vzwf-b-l-m22c-g1-275-v-3ap4-6-r1
Key Features

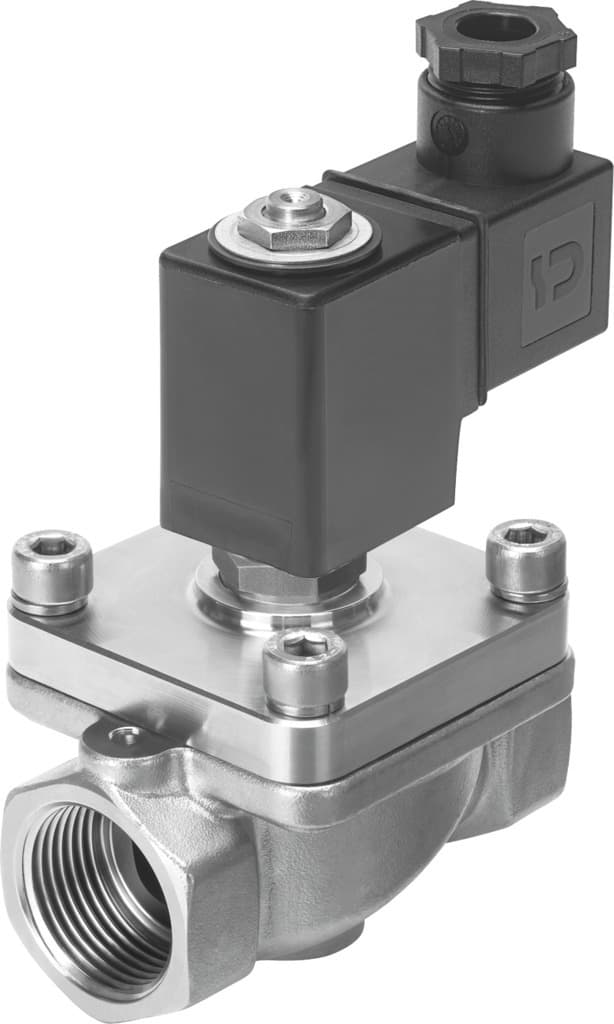

- 1The Festo VZWF-B-L-M22C-G1-275-V-3AP4-6-R1 solenoid valve is a reliable and efficient solution for automation, ensuring precise control and minimal downtime.
- 2This valve features a diaphragm design, providing a force-pilot operated mechanism for precise medium control, making it ideal for various industrial applications.
- 3With a nominal width of 27.5 mm and a rectangular design, the VZWF-B-L-M22C-G1-275-V-3AP4-6-R1 is compact and easy to integrate into your automation system.
- 4The valve operates at a nominal pressure of PN 40 and supports a pressure difference of up to 6 bar, ensuring it can handle demanding industrial conditions.
- 5The Festo VZWF-B-L-M22C-G1-275-V-3AP4-6-R1 is designed with safety in mind, featuring an IP65 degree of protection and high corrosion resistance, making it suitable for harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Diaphragm valve Force pilot operated | Actuation type | Electrical |
| Sealing principle | Soft | Mounting position | Magnet, upright |
| Type of mounting | Line installation | Fitting connection | G1 |
| Electrical connection | Form A Plug as per EN 175301-803 Rectangular design | Nominal width | 27.5mm |
| Valve function | 2/2, closed, monostable | Manual override | None |
| Flow direction | Non-reversible | Medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Inert gas Mineral oil Water Neutral liquids Other flow media on request |
| Nominal pressure of fitting PN | 40 | Pressure difference | 0psi |
| Differential pressure | 0bar | Coil characteristics | 230 V AC: 50/60 Hz, initial power 18.0 VA, holding power 15.0 VA |
| Permissible voltage fluctuations | +/- 10 % | Symbol | 00992976 |
| Medium pressure | 0psi 87psi | Max. viscosity | 22mm2/s |
| Temperature of medium | -10°C 80°C | Ambient temperature | -10°C 35°C |
| Leak rate to EN 12266-1 | A | Flow rate Kv | 11m3/h |
| Standard nominal flow rate | 11750l/min | On switching time | 275ms |
| Switching time off | 290ms | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364 zone III | Housing material | Cast stainless steel |
| Material number of housing | 1.4581 | Seals material | FPM |
| Material of screws | High-alloy stainless steel | Material number of screw | 1.4301 |
| Product weight | 1500g | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Degree of protection | IP65 |
| Corrosion resistance class (CRC) | 3 - High corrosion stress | Manufacturer ID | 1492346 |
Specifications may be subject to change without notice
