Product Model

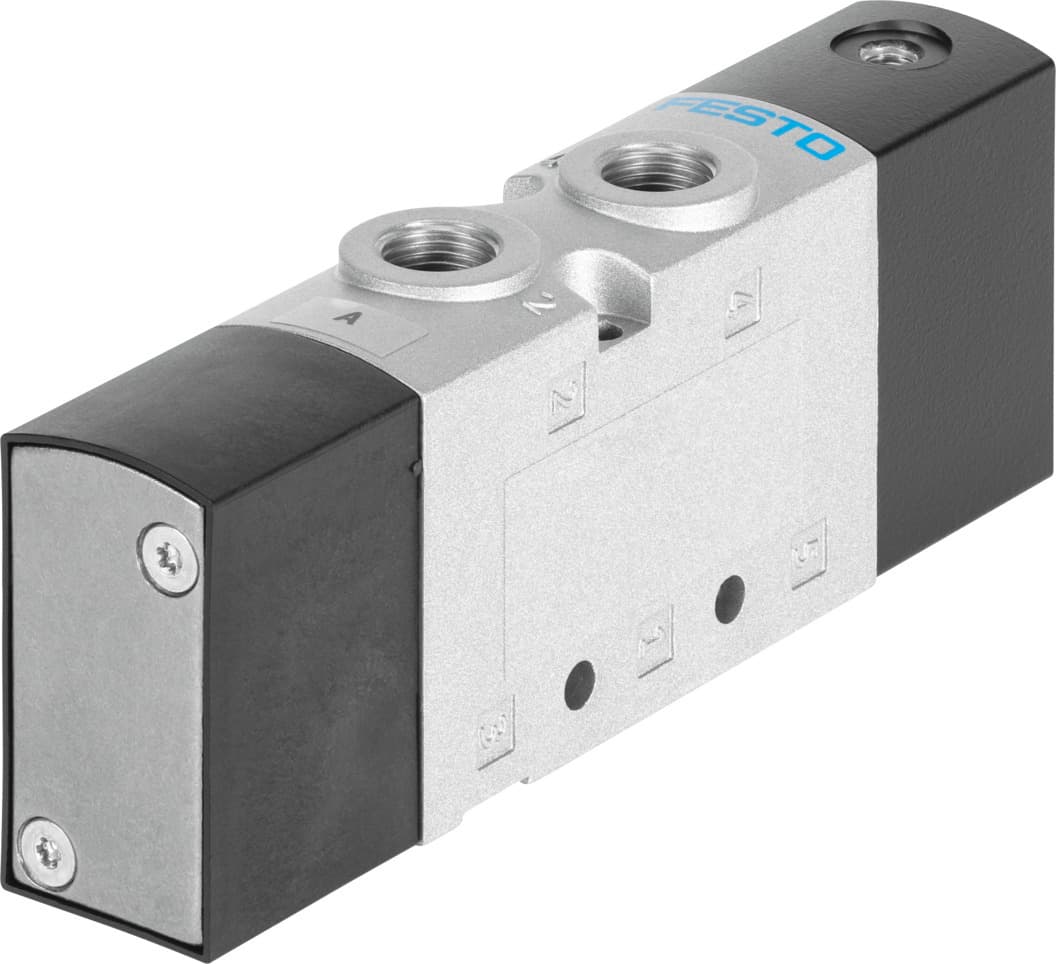

vuws-lt25-m52-m-n14
Key Features
- 1High-Performance 5/2-way Monostable Function: Efficiently controls airflow with a monostable valve function.
- 2Robust Construction: Built with die-cast aluminum housing and galvanized steel screws for durability.
- 3High Flow Rate: Standard nominal flow rate of 1000 l/min for fast and efficient operation.
- 4Wide Operating Pressure Range: Operates between 2.5 bar and 10 bar, accommodating various industrial conditions.
- 5Compliant with Industry Standards: Meets RoHS compliance and ISO 8573-1:2010 standards for compressed air quality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Pneumatic |
| Valve size | 26.5mm | Standard nominal flow rate | 1000l/min |
| Pneumatic working port | 1/4 NPT | Operating pressure | 2.5bar 10bar |
| Structural design | Plate seat | Reset method | Mechanical spring |
| Certification | c UL us - Recognized (OL) | Nominal width | 6.6mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | None |
| Type of control | Direct | Pilot air supply port | Internal |
| Flow direction | Non-reversible | Symbol | 00991001 |
| Lap | Underlap | Pilot pressure MPa | 0.25MPa 1MPa |
| Pilot pressure | 2.5bar 10bar | Switching time off | 23ms |
| On switching time | 8ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Temperature of medium | -10°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10°C 60°C | Product weight | 317g |
| Type of mounting | Optionally: On terminal strip With through-hole | Venting hole connection | Not ducted |
| Pilot air port 14 | 10-32 UNF-2B | Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 2 | 1/4 NPT | Pneumatic connection 3 | 1/4 NPT |
| Pneumatic connection 4 | 1/4 NPT | Pneumatic connection 5 | 1/4 NPT |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR TPE-U(PU) |
| Housing material | Die-cast aluminum Painted | Material of screws | Steel, galvanized |
| Manufacturer ID | 8035221 |
Specifications may be subject to change without notice
