Product Model

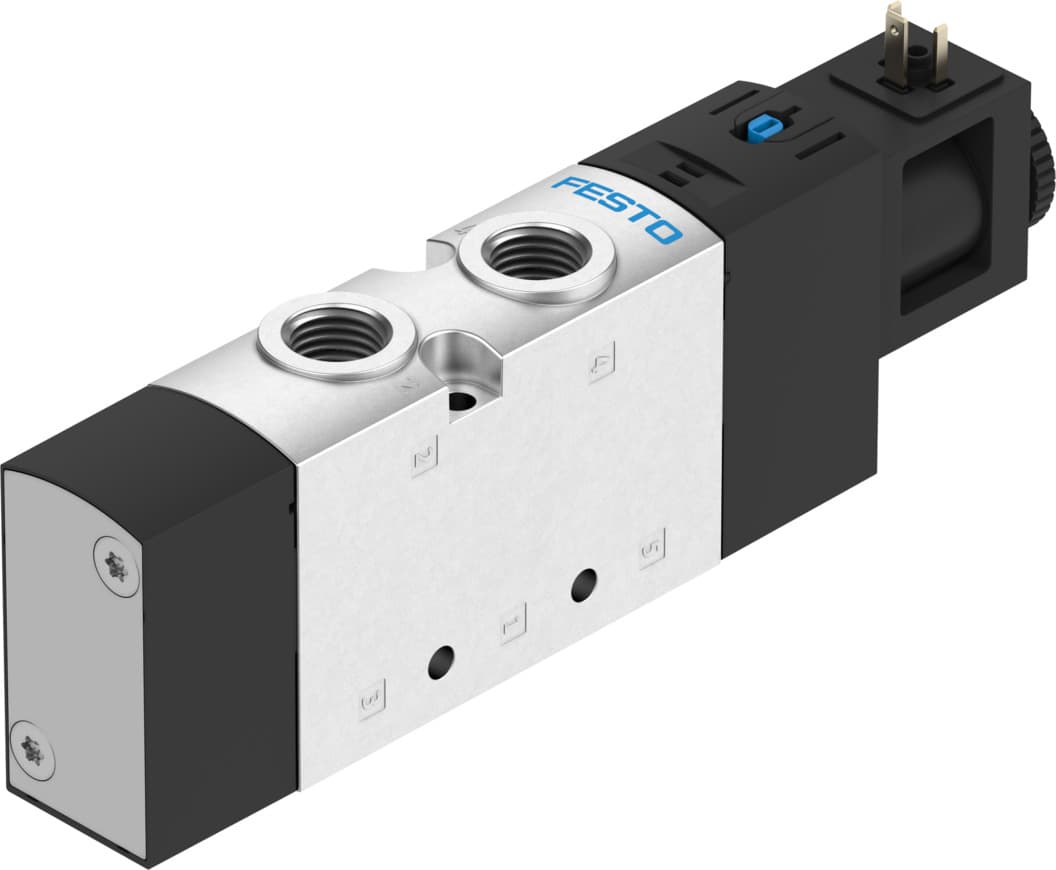

vuvs-lt25-m52-mzd-g14-f8-1c1
Key Features
- 1High-Performance Air Control: The Festo VUVS-LT25-M52-MZD-G14-F8-1C1 solenoid valve ensures precise control with a standard nominal flow rate of 1000l/min.
- 2Robust Design: Built with die-cast aluminum housing and HNBR seals, this valve offers robustness and durability in harsh industrial environments.
- 3Electrical Actuation: Easily controlled with 24V DC, this valve provides reliable operation with minimal power consumption (3.3W).
- 4Multi-Functional: Equipped with a mechanical spring reset method and detenting manual override, this valve offers flexibility in operation and maintenance.
- 5Compliant with Standards: Meets international standards including C UL us – Recognized (OL) and IP65 degree of protection, ensuring safety and reliability in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Valve size | 26.5mm | Standard nominal flow rate | 1000l/min |
| Pneumatic working port | G1/4 | Operating voltage | 24V DC |
| Operating pressure | 2.5bar 10bar | Structural design | Plate seat |
| Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
| Degree of protection | IP65 With plug socket as per IEC 60529 | Nominal width | 6.6mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | External |
| Flow direction | Non-reversible | Symbol | 00991024 |
| Lap | Underlap | Pilot pressure MPa | 0.25MPa 1MPa |
| Pilot pressure | 2.5bar 10bar | b-value | 0.3 |
| C value | 4.5l/sbar | Switching time off | 24ms |
| On switching time | 14ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 2000μs | Max. negative test pulse on 1 signal | 3600μs |
| Coil characteristics | 24 V DC: 3.3 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Cleanroom class | Class 6 according to ISO 14644-1 |
| Temperature of medium | -10°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10°C 60°C | Product weight | 351g |
| Electrical connection | Form C as per EN 175301-803 | Type of mounting | Optionally: On terminal strip With through-hole |
| Venting hole connection | Not ducted | Pilot exhaust air port 84 | M5 |
| Pilot air port 14 | M5 | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | G1/4 | Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR TPE-U(PU) |
| Housing material | Die-cast aluminum Painted | Material of screws | Steel, galvanized |
| Manufacturer ID | 8035184 |
Specifications may be subject to change without notice
