Product Model
vuvs-lt25-b52-d-n14-f8
Key Features
- 1Robust solenoid valve with easy handling and durable construction.
- 25/2 bistable valve function for precise control.
- 3Electrical actuation type for reliable operation.
- 4Standard nominal flow rate of 1000 l/min for efficient air handling.
- 5Operating pressure range of 1.5 to 10 bar for versatile use in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Electrical |
| Valve size | 26.5mm | Standard nominal flow rate | 1000l/min |
| Pneumatic working port | 1/4 NPT | Operating pressure | 1.5bar 10bar |
| Structural design | Plate seat | Certification | c UL us - Recognized (OL) |
| Nominal width | 6.6mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |

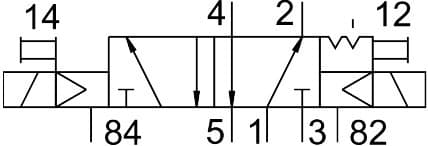

| Symbol | 00995754 | Lap | Underlap |
| b-value | 0.2 | C value | 4.6l/sbar |
| Changeover time | 10ms | Max. positive test pulse with 0 signal | 2000μs |
| Max. negative test pulse on 1 signal | 3600μs | Coil characteristics | See solenoid coil, to be ordered separately |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 60°C |
| Product weight | 310g | Type of mounting | Optionally: On terminal strip With through-hole |
| Venting hole connection | Not ducted | Pilot exhaust air port 82 | 10-32 UNF-2B |
| Pilot exhaust air port 84 | 10-32 UNF-2B | Pneumatic connection 1 | 1/4 NPT |
| Pneumatic connection 2 | 1/4 NPT | Pneumatic connection 3 | 1/4 NPT |
| Pneumatic connection 4 | 1/4 NPT | Pneumatic connection 5 | 1/4 NPT |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR TPE-U(PU) |
| Housing material | Die-cast aluminum Painted | Material of screws | Steel, galvanized |
| Manufacturer ID | 8035222 |
Specifications may be subject to change without notice
