Product Model

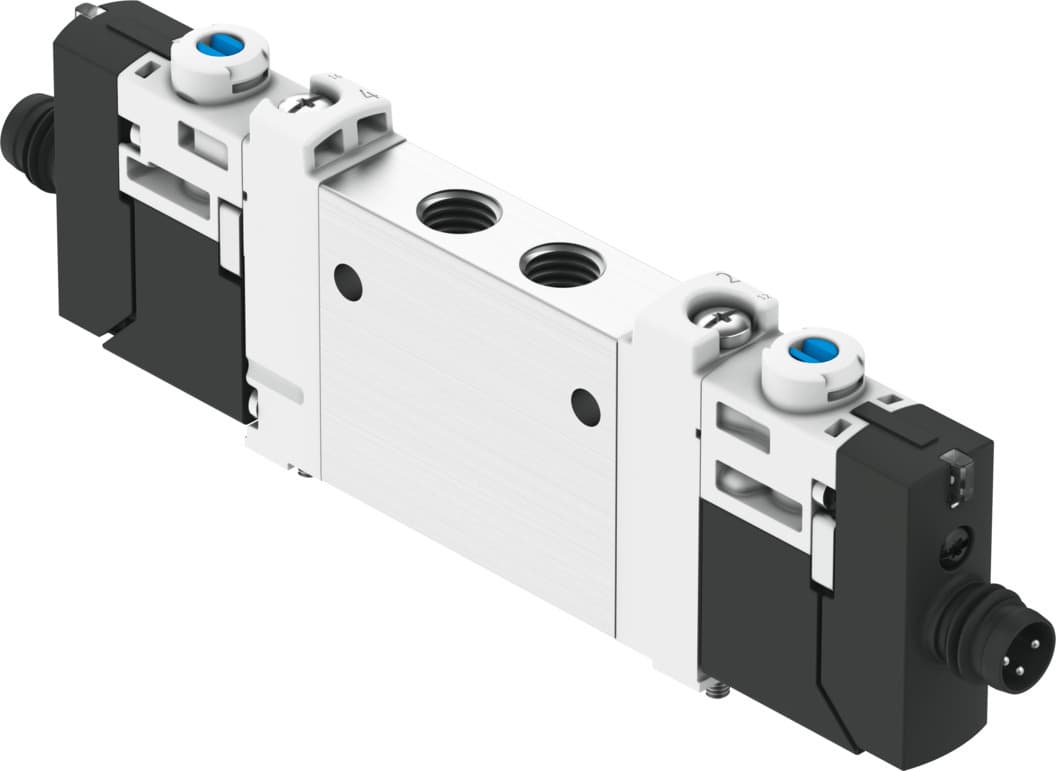

vuvg-lk10-b52-t-m7-1r8l-s
Key Features
- 1High flow rate of up to 340 l/min for efficient pneumatic control.
- 2Compact design with a 10 mm valve size, ideal for space-saving installations.
- 3Versatile mounting options including inline and manifold rail configurations.
- 4Reliable operation with a standard nominal flow rate and pressure range of 1.5 bar to 7 bar.
- 5Easy maintenance and troubleshooting with an integrated 360° LED display for quick status review.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Electrical |
| Valve size | 10mm | Standard nominal flow rate | 340l/min |
| Pneumatic working port | M7 | Operating voltage | 24V DC |
| Operating pressure | 1.5bar 7bar | Structural design | Piston slide with sealing ring |
| Certification | c UL us - Recognized (OL) | Certificate issuing authority | UL MH19482 |
| Degree of protection | IP65 | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Symbol | 00992897 | Lap | Overlap |
| Signal status display | LED | Max. switching frequency | 2Hz |
| Changeover time | 8ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 1600μs | Max. negative test pulse on 1 signal | 3000μs |
| Coil characteristics | 24 V DC: 0.8 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C 50°C | Product weight | 57g |
| Electrical connection | 3-pin M8x1 A-coded as per EN 61076-2-104 Plug | Type of mounting | On terminal strip With through-hole |
| Pneumatic connection 2 | M7 | Pneumatic connection 4 | M7 |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 8042552 |
Specifications may be subject to change without notice
