Product Model

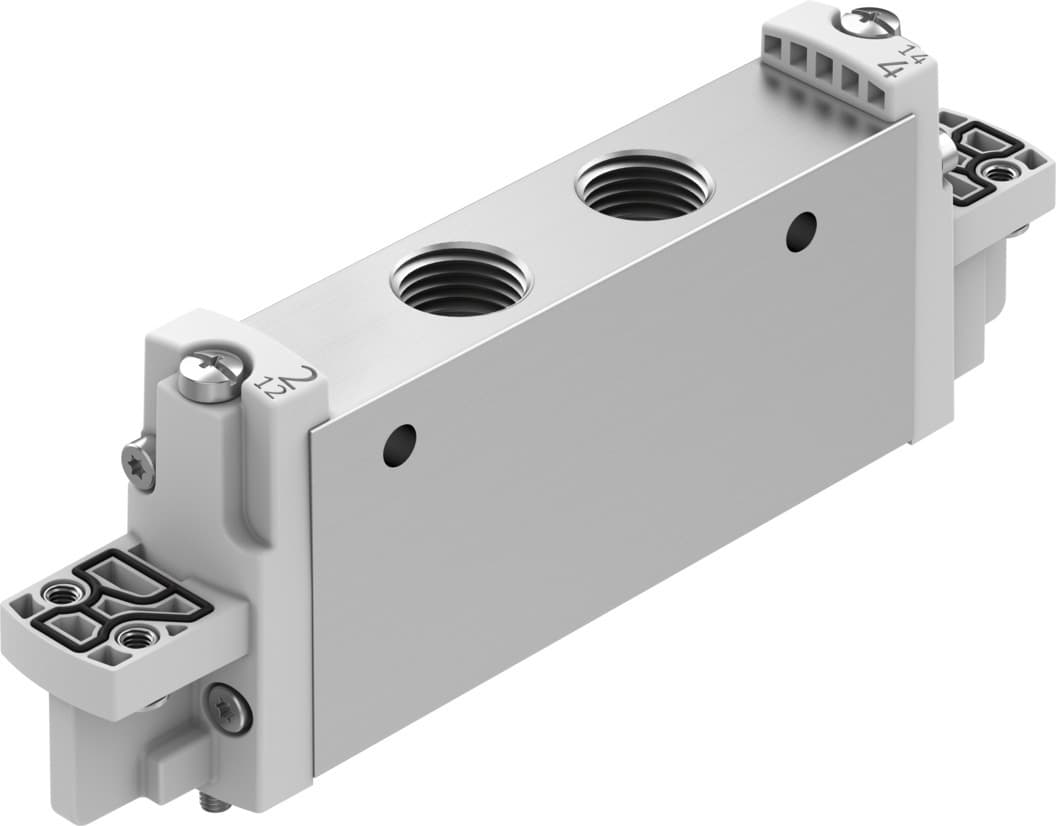

vuvg-l18-p53e-g14-p1
Key Features
- 1The VUVG-L18-P53E-G14-P1 offers a standard nominal flow rate of 910 l/min, ensuring efficient pneumatic control.
- 2Constructed with a piston gate valve design and mechanical spring reset, it provides durability and reliability.
- 3Available for mounting on manifold rails or through-holes, offering flexibility in installation options.
- 4Equipped with an IP65 rating, ensuring protection against dust and water, making it suitable for various industrial environments.
- 5Made from RoHS-compliant materials, including HNBR seals and wrought aluminum alloy housing, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/3, exhausted | Actuation type | Electrical |
| Valve size | 18mm | Standard nominal flow rate | 910l/min |
| Pneumatic working port | G1/4 | Operating pressure | 3bar 8bar |
| Structural design | Piston gate valve | Reset method | Mechanical spring |
| Certification | c UL us - Recognized (OL) | Certificate issuing authority | UL MH19482 |
| Degree of protection | IP65 With electrical pilot valve and plug socket | Nominal width | 6.3mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Symbol | 00992894 |
| Lap | Indefinite overlap | Pilot pressure MPa | 0.3MPa 0.8MPa |
| Pilot pressure | 3bar 8bar | Switching time off | 32ms |
| On switching time | 15ms | Changeover time | 21ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 700μs |
| Max. negative test pulse on 1 signal | 900μs | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
| Temperature of medium | -5°C 60°C | Ambient temperature | -5°C 60°C |
| Product weight | 136g | Electrical connection | Via electric pilot valve |
| Type of mounting | Optionally: On terminal strip With through-hole | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | G1/4 | Pneumatic connection 5 | G1/4 |
| Pilot interface | as per ISO 15218 | Note on materials | RoHS-compliant |
| Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 8033557 |
Specifications may be subject to change without notice
