Product Model

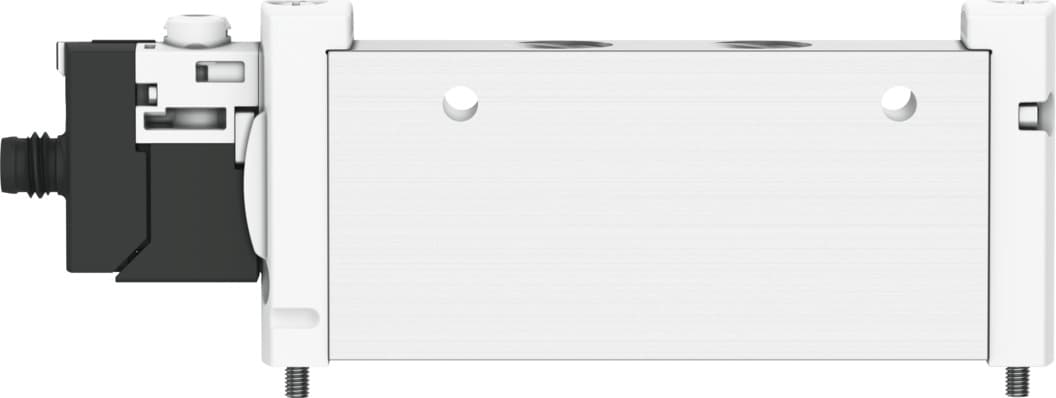

vuvg-l18-m52-mt-g14-1r8l
Key Features
- 1High Flow Rate: Achieve up to 1300 l/min with the VUVG-L18-M52-MT-G14-1R8L.
- 2Compact Design: Compact and lightweight, suitable for various mounting positions.
- 3Pilot-Controlled: Precise control with internal pilot air supply port.
- 4Durable Construction: IP65 protection with plug socket, ensuring reliable operation.
- 5Versatile Applications: Suitable for compressed air applications with oil lubrication option.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Valve size | 18mm | Standard nominal flow rate | 1300l/min |
| Pneumatic working port | G1/4 | Operating voltage | 24V DC |
| Operating pressure | 3bar 8bar | Structural design | Piston gate valve |
| Reset method | Mechanical spring | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Degree of protection | IP65 With plug socket | Nominal width | 6.9mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting Non-detenting Covered |
| Type of control | Pilot-controlled | Pilot air supply port | Internal |
| Symbol | 00991003 | Lap | Indefinite overlap |
| Pilot pressure MPa | 0.3MPa 0.8MPa | Pilot pressure | 3bar 8bar |
| Switching time off | 45ms | On switching time | 10ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 700μs |
| Max. negative test pulse on 1 signal | 900μs | Coil characteristics | 24 V DC: 1.0 W |
| Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 5 according to ISO 14644-1 | Temperature of medium | -5°C 60°C |
| Ambient temperature | -5°C 60°C | Product weight | 154g |
| Electrical connection | Via electrical sub-base | Type of mounting | Optionally: On terminal strip With through-hole |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
| Pneumatic connection 4 | G1/4 | Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 8031532 |
Specifications may be subject to change without notice
