Product Model

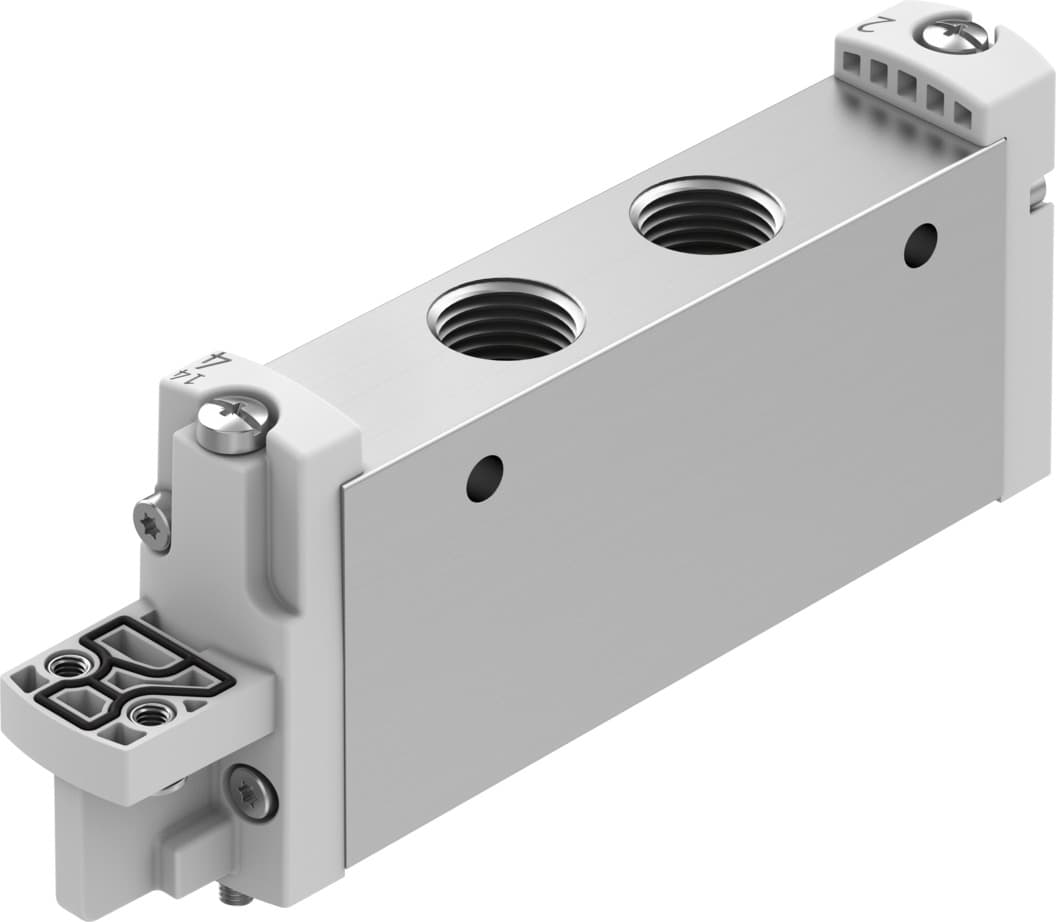

vuvg-l18-m52-m-g14-p1
Key Features
- 1High-Performance 5/2-Way Monostable Valve Function
- 2Electric Actuation for Efficient Operation
- 3Standard Nominal Flow Rate of 1300 l/min
- 4Operating Pressure Range of 0.3 MPa to 0.8 MPa
- 5IP65 Degree of Protection and C UL us Recognition
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Valve size | 18mm | Standard nominal flow rate | 1300l/min |
| Pneumatic working port | G1/4 | Operating pressure | 3bar 8bar |
| Structural design | Piston gate valve | Reset method | Mechanical spring |
| Certification | c UL us - Recognized (OL) | Certificate issuing authority | UL MH19482 |
| Degree of protection | IP65 With electrical pilot valve and plug socket | Nominal width | 6.9mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Symbol | 00991003 |
| Lap | Indefinite overlap | Pilot pressure MPa | 0.3MPa 0.8MPa |
| Pilot pressure | 3bar 8bar | Switching time off | 26ms |
| On switching time | 14ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 700μs | Max. negative test pulse on 1 signal | 900μs |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 5 according to ISO 14644-1 | Temperature of medium | -5°C 60°C |
| Ambient temperature | -5°C 60°C | Product weight | 142g |
| Electrical connection | Via electric pilot valve | Type of mounting | Optionally: On terminal strip With through-hole |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
| Pneumatic connection 4 | G1/4 | Pneumatic connection 5 | G1/4 |
| Pilot interface | as per ISO 15218 | Note on materials | RoHS-compliant |
| Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 8033554 |
Specifications may be subject to change without notice
