Product Model

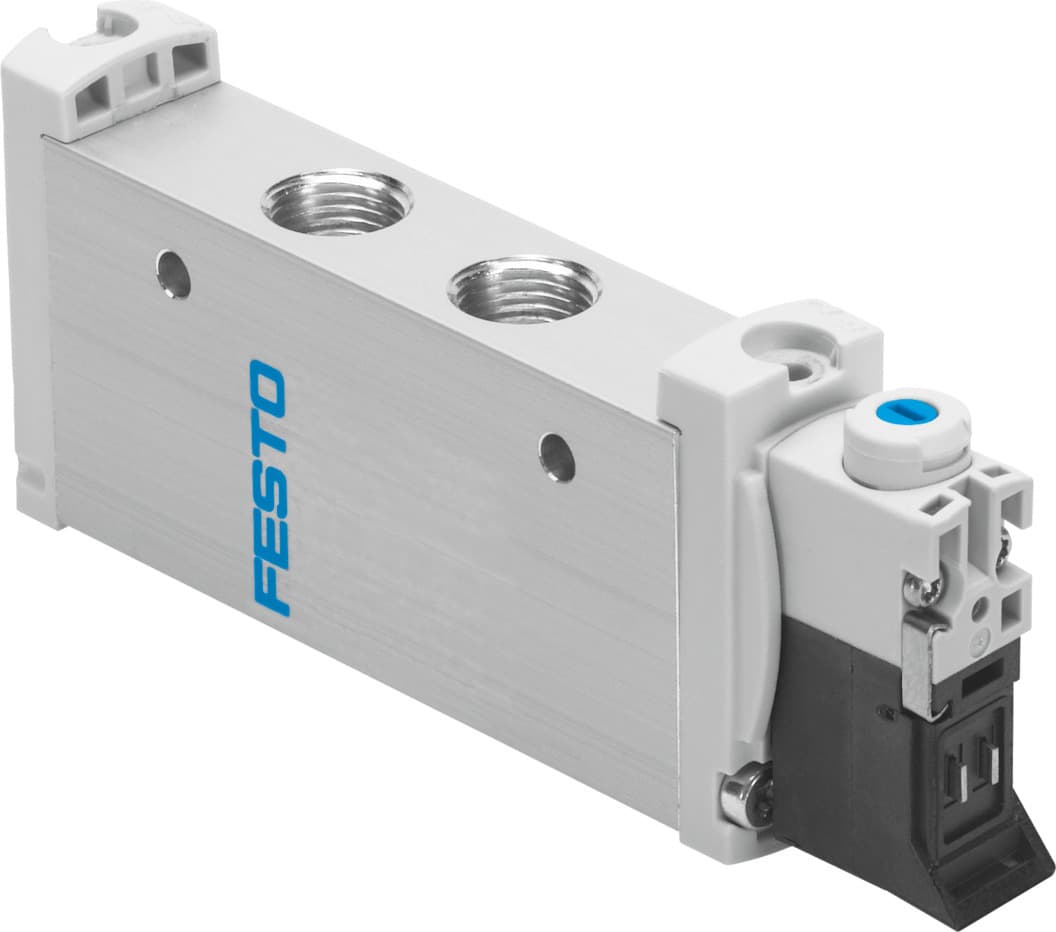

vuvg-l14-m52-mzt-g18-1p3
Key Features
- 1Precise Flow Control: The VUVG-L14-M52-MZT-G18-1P3 features a 5/2-way monostable valve function with a standard nominal flow rate of 700L/min to 780L/min.
- 2Reliable Operation: Equipped with a mechanical spring reset method and soft sealing principle, ensuring consistent performance in various industrial settings.
- 3Advanced Design: Designed with a piston gate valve structure, providing efficient flow management and compatibility with compressed air as per ISO 8573-1:2010 [7:4:4].
- 4Versatile Mounting Options: Offers flexible mounting options including through-hole, terminal strip, and manifold rail, catering to diverse application needs.
- 5Comprehensive Certifications: Meets RCM compliance mark and c UL us – Recognized (OL) standards, ensuring safety and reliability in industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Valve size | 14mm | Standard nominal flow rate | 700l/min 780l/min |
| Pneumatic working port | G1/8 | Operating voltage | 24V DC |
| Operating pressure | -0.9bar 8bar | Structural design | Piston gate valve |
| Reset method | Mechanical spring | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Degree of protection | IP40 IP65 With plug socket | Nominal width | 5.6mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting Non-detenting Covered |
| Type of control | Pilot-controlled | Pilot air supply port | External |
| Symbol | 00991190 | Lap | Overlap |
| Pilot pressure MPa | 0.3MPa 0.8MPa | Pilot pressure | 3bar 8bar |
| Suitability for vacuum | yes | Switching time off | 40ms |
| On switching time | 13ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 700μs | Max. negative test pulse on 1 signal | 900μs |
| Coil characteristics | 24 V DC: 1.0 W 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
| Temperature of medium | -5°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C 60°C | Product weight | 70g |
| Electrical connection | Via electrical sub-base | Type of mounting | Optionally: On terminal strip With through-hole |
| Pilot air port 12/14 | M5 | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 | Pneumatic connection 4 | G1/8 |
| Pneumatic connection 5 | G1/8 | Note on materials | RoHS-compliant |
| Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 574375 |
Specifications may be subject to change without notice
