Product Model

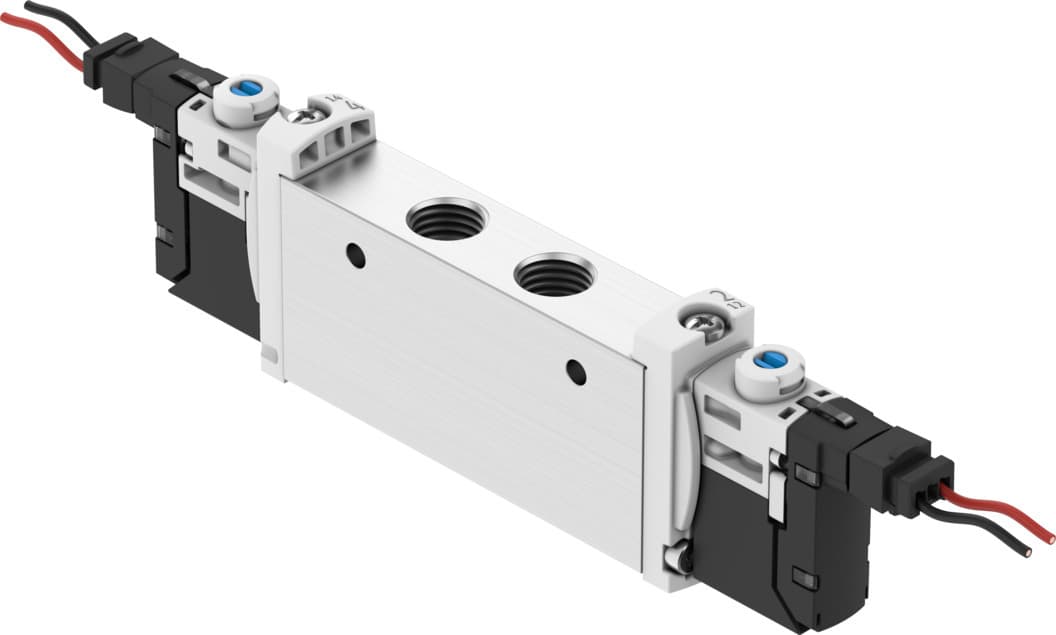

vuvg-l14-b52-t-g18-1h2l-w1
Key Features
- 1High flow rate of 700-780 l/min for efficient operation.
- 2Compact design saves space and reduces installation complexity.
- 3Robust construction with a durable aluminum alloy housing.
- 4Easy installation and maintenance with integrated 360° LED display.
- 5Reliable operation in a wide temperature range (-5°C to +60°C).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, bistable | Actuation type | Electrical |
| Valve size | 14mm | Standard nominal flow rate | 700l/min 780l/min |
| Pneumatic working port | G1/8 | Operating voltage | 24V DC |
| Operating pressure | 1.5bar 8bar | Structural design | Piston gate valve |
| Certification | RCM compliance mark c UL us - Recognized (OL) | Degree of protection | IP40 With plug socket |
| Nominal width | 5.6mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting Non-detenting Covered | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Symbol | 00992897 |
| Lap | Overlap | Pilot pressure MPa | 0.15MPa 0.8MPa |
| Pilot pressure | 1.5bar 8bar | Suitability for vacuum | no |
| Changeover time | 8ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 700μs | Max. negative test pulse on 1 signal | 900μs |
| Coil characteristics | 24 V DC: 1.0 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
| Temperature of medium | -5°C 60°C | Ambient temperature | -5°C 60°C |
| Product weight | 89g | Electrical connection | Via electrical sub-base |
| Type of mounting | Optionally: On terminal strip With through-hole | Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 | Pneumatic connection 3 | G1/8 |
| Pneumatic connection 4 | G1/8 | Pneumatic connection 5 | G1/8 |
| Note on materials | RoHS-compliant | Seals material | HNBR NBR |
| Housing material | Wrought aluminum alloy | Manufacturer ID | 577319 |
Specifications may be subject to change without notice
