Product Model

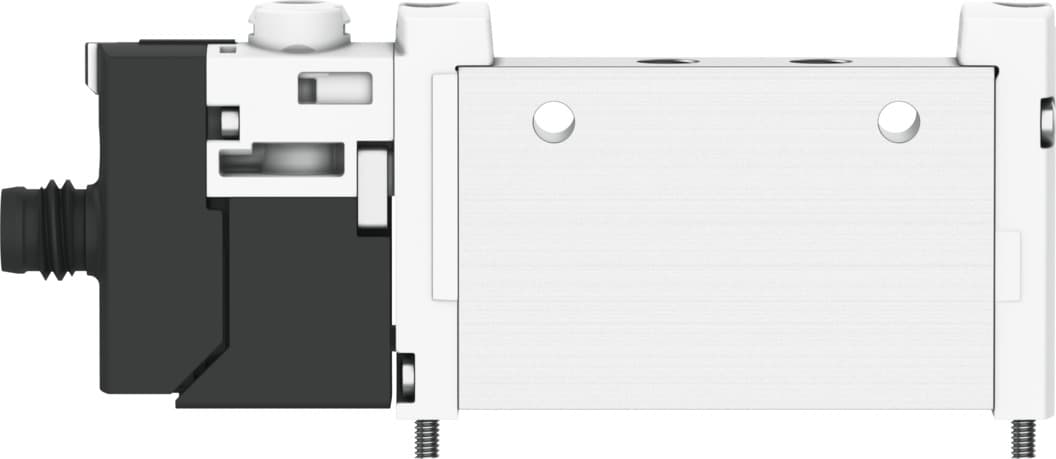

vuvg-l10-m52-mt-m5-1r8l
Key Features
- 1High-Performance 5/2 Monostable Function: Efficiently controls pneumatic systems with a reliable monostable operation.
- 2Electrical Actuation: Easy to integrate with electrical control systems for precise valve operation.
- 3Compact Design: Measures 10 mm in size, perfect for space-constrained applications.
- 4High Flow Rate: Standard nominal flow rate of 190 l/min ensures efficient air flow management.
- 5Durable Construction: Built with IP65 protection and made from RoHS-compliant materials for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Valve size | 10mm | Standard nominal flow rate | 220l/min |
| Pneumatic working port | M5 | Operating voltage | 24V DC |
| Operating pressure | 3bar 8bar | Structural design | Piston gate valve |
| Reset method | Mechanical spring | Certification | RCM compliance mark c UL us - Recognized (OL) |
| Degree of protection | IP65 With plug socket | Nominal width | 2.2mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting Non-detenting Covered |
| Type of control | Pilot-controlled | Pilot air supply port | Internal |
| Symbol | 00991003 | Lap | Overlap |
| Pilot pressure MPa | 0.3MPa 0.8MPa | Pilot pressure | 3bar 8bar |
| Suitability for vacuum | no | Switching time off | 24ms |
| On switching time | 8ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 700μs | Max. negative test pulse on 1 signal | 900μs |
| Coil characteristics | 24 V DC: 1.0 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Restricted ambient and media temperature | -5 - 50 °C Without holding power reduction |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
| Temperature of medium | -5°C 60°C | Ambient temperature | -5°C 60°C |
| Product weight | 44g | Electrical connection | Via electrical sub-base |
| Type of mounting | Optionally: On terminal strip With through-hole | Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 | Pneumatic connection 4 | M5 |
| Pneumatic connection 5 | M5 | Note on materials | RoHS-compliant |
| Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 8031472 |
