Product Model

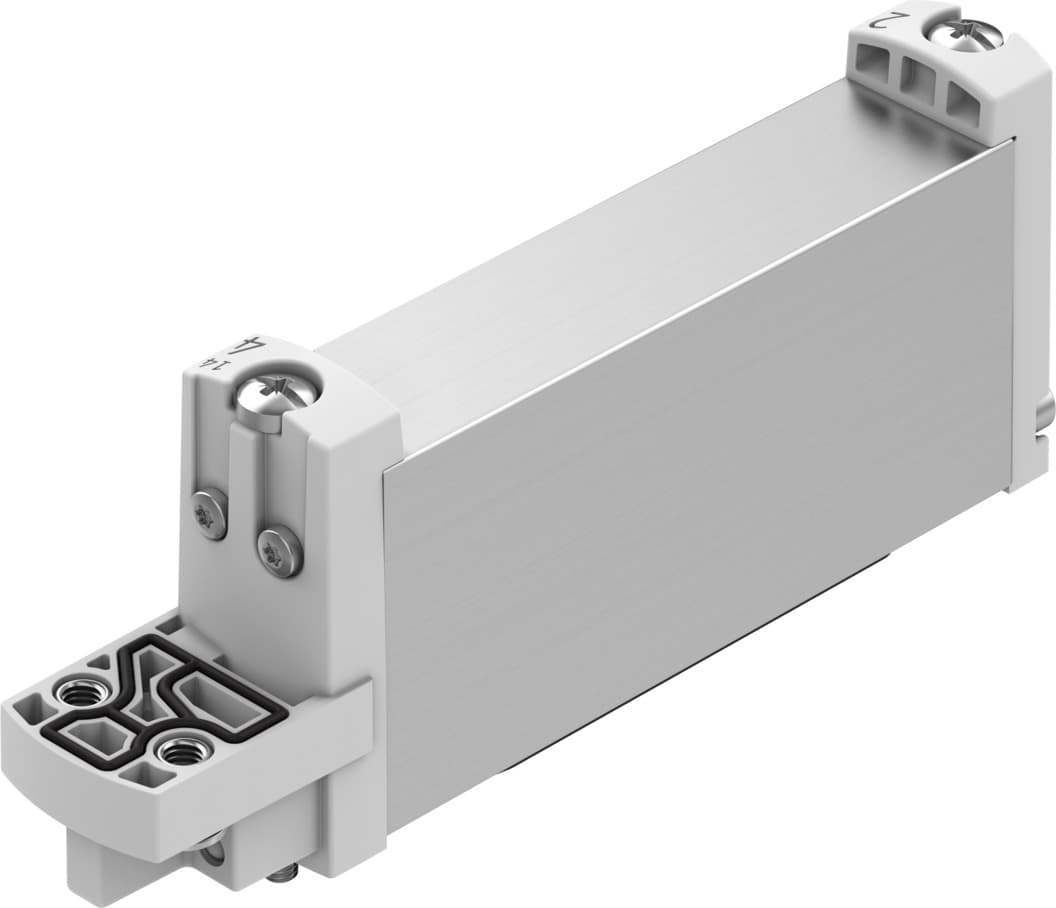

vuvg-b14-m52-mz-f-p1
Key Features
- 1High Flow Rate: Standard nominal flow rate of 520 to 630 liters per minute.
- 2Compact Design: 14 mm valve size with a nominal width of 5.6 mm.
- 3Reliable Operation: Mechanical spring reset method and IP65 degree of protection.
- 4Versatile Mounting: Optional mounting position and external pilot air supply.
- 5Compliance and Safety: UL recognized (OL) and RoHS compliant for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Valve size | 14mm | Standard nominal flow rate | 520l/min 630l/min |
| Pneumatic working port | Flange | Operating pressure | -0.9bar 8bar |
| Structural design | Piston gate valve | Reset method | Mechanical spring |
| Certification | c UL us - Recognized (OL) | Certificate issuing authority | UL MH19482 |
| Degree of protection | IP65 With electrical pilot valve and plug socket | Nominal width | 5.6mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Type of control | Pilot-controlled |
| Pilot air supply port | External | Symbol | 00991025 |
| Lap | Overlap | Pilot pressure MPa | 0.3MPa 0.8MPa |
| Pilot pressure | 3bar 8bar | Suitability for vacuum | yes |
| Switching time off | 26ms | On switching time | 12ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 700μs |
| Max. negative test pulse on 1 signal | 900μs | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
| Temperature of medium | -5°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C 60°C | Product weight | 58g |
| Electrical connection | Via electric pilot valve | Type of mounting | On terminal strip |
| Pilot interface | as per ISO 15218 | Note on materials | RoHS-compliant |
| Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 8033542 |
