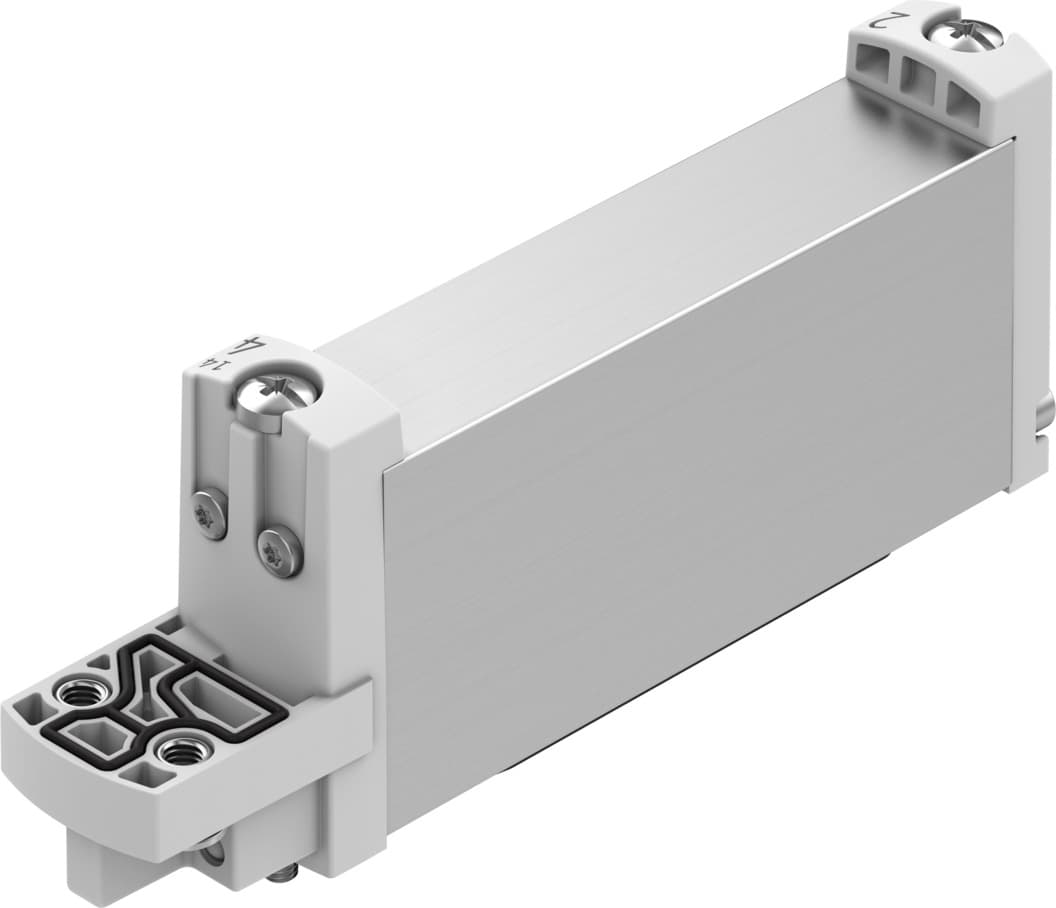

Product Model
vuvg-b14-m52-az-f-p1
Key Features
- 1High-Performance Air Control: Precise 5/2-way monostable operation for reliable air flow management.
- 2Robust Design: Constructed with a piston gate valve and mechanical spring reset for durability.
- 3Electrical Actuation: Easy to integrate with electric pilot valves for seamless control.
- 4Wide Operating Range: Suitable for operating pressures from -0.9 bar to 10 bar and temperatures from -5°C to 60°C.
- 5Compliance and Certifications: Meets UL and CSA standards, ensuring safety and reliability in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Valve size | 14mm | Standard nominal flow rate | 520l/min 630l/min |
| Pneumatic working port | Flange | Operating pressure | -0.9bar 10bar |
| Structural design | Piston gate valve | Reset method | Pneumatic spring |
| Certification | c UL us - Recognized (OL) | Certificate issuing authority | UL MH19482 |
| Degree of protection | IP65 With electrical pilot valve and plug socket | Nominal width | 5.6mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Type of control | Pilot-controlled |
| Pilot air supply port | External | Symbol | 00991053 |
| Lap | Overlap | Pilot pressure MPa | 0.25MPa 0.8MPa |
| Pilot pressure | 2.5bar 8bar | Suitability for vacuum | yes |
| Switching time off | 16ms | On switching time | 16ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 700μs |
| Max. negative test pulse on 1 signal | 900μs | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 5 according to ISO 14644-1 |
| Temperature of medium | -5°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C 60°C | Product weight | 66g |
| Electrical connection | Via electric pilot valve | Type of mounting | On terminal strip |
| Pilot interface | as per ISO 15218 | Note on materials | RoHS-compliant |
| Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 8033541 |
Specifications may be subject to change without notice
