Product Model

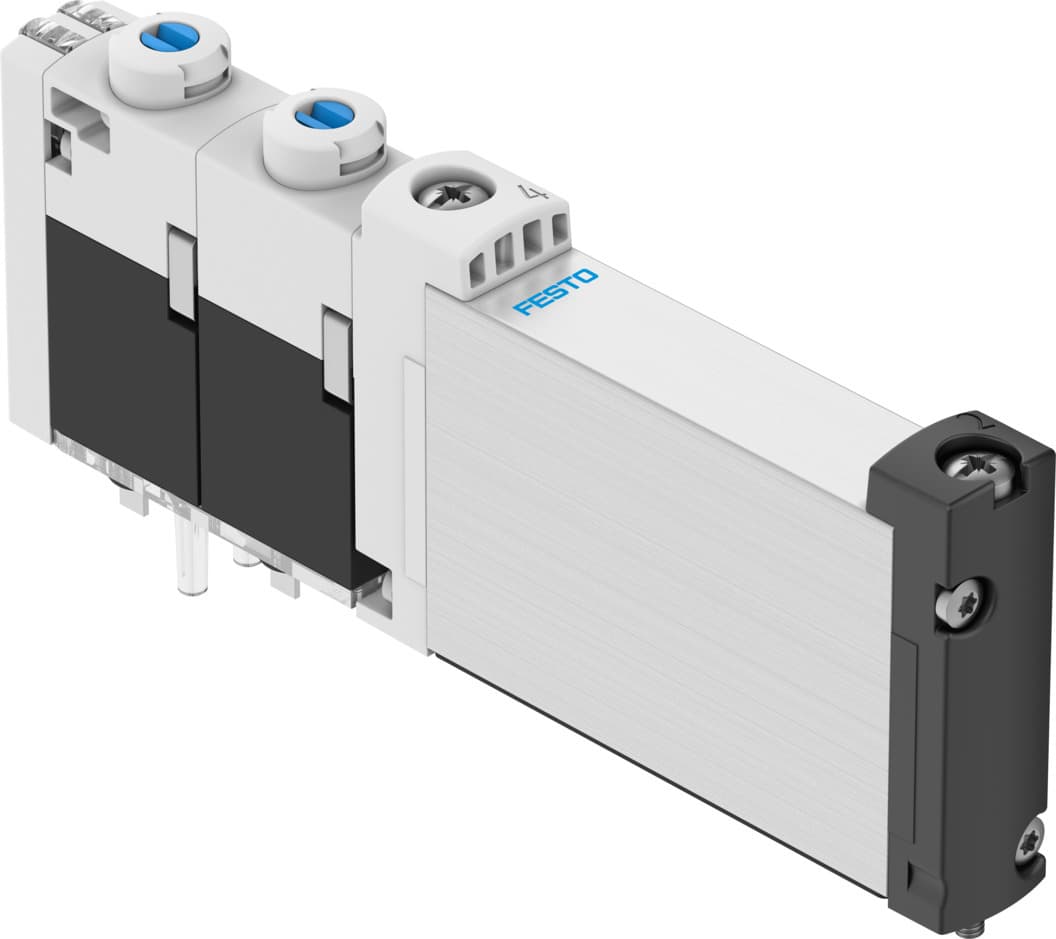

vuvg-b10-p53e-zt-f-1t1l-ex2c
Key Features
- 15/3 Exhausted Valve Function: Ideal for applications requiring precise flow control.
- 2Electric Actuation: Efficient and reliable operation with 24V DC.
- 310mm Valve Size: Compact design for space-sensitive installations.
- 4200l/min Standard Nominal Flow Rate: High performance in pneumatic systems.
- 5IP65 and IP67 Degrees of Protection: Durable and resistant to harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/3, exhausted | Actuation type | Electrical |
| Valve size | 10mm | Standard nominal flow rate | 200l/min |
| Pneumatic working port | Flange | Operating voltage | 24V DC |
| Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
| Certification | c UL us - Recognized (OL) | Degree of protection | IP65 IP67 |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | External |
| Flow direction | Reversible | Symbol | 00991127 |
| Lap | Indefinite overlap | Signal status display | LED |
| Pilot pressure MPa | 0.3MPa 0.8MPa | Pilot pressure | 3bar 8bar |
| Max. switching frequency | 3Hz | Switching time off | 38ms |
| On switching time | 12ms | Changeover time | 16ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 1600μs |
| Max. negative test pulse on 1 signal | 3000μs | Coil characteristics | 22 V DC: 1.0 W |
| Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | -5°C 60°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 60°C |
| Product weight | 58g | Electrical connection | Via sub-base |
| Type of mounting | On terminal strip | Note on materials | RoHS-compliant |
| Seals material | HNBR NBR | Housing material | Wrought aluminum alloy |
| Manufacturer ID | 8041894 |
Specifications may be subject to change without notice
