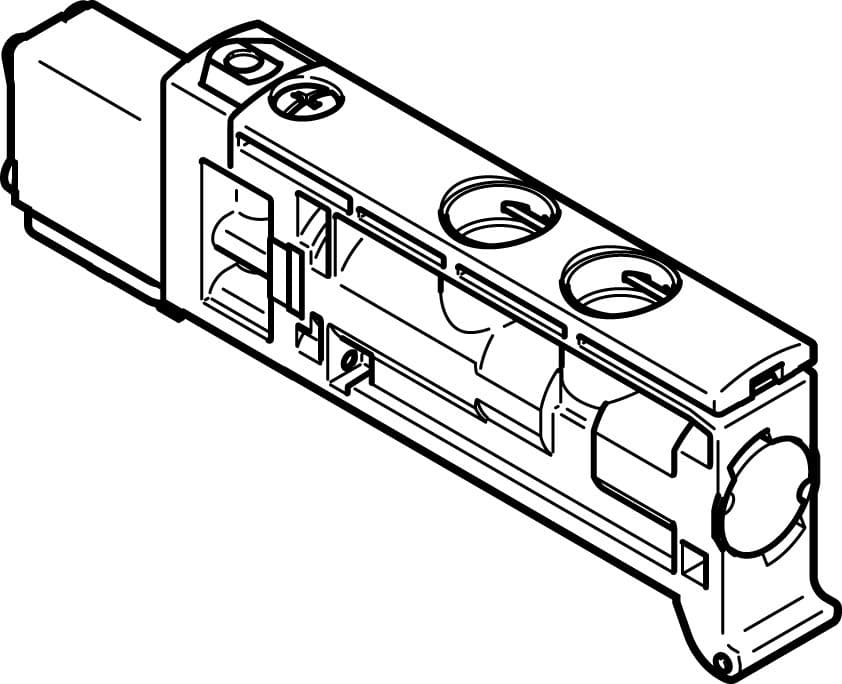

Product Model
vuvb-st12-m52-mzd-qx-1t1
Key Features
- 1High-Performance Air Control: Efficiently manages compressed air with a standard nominal flow rate of 240-400 l/min.
- 2Robust Design: Built with a poppet valve and mechanical spring return for reliable operation in harsh environments.
- 3IP65 Protection: Ensures durability and resistance to dust and water, making it suitable for various industrial settings.
- 4Flexible Mounting Options: Can be mounted on a sub-base with auxiliary pilot air ports for versatile installation.
- 5Compliant with Industry Standards: Meets ISO 8573-1:2010 and VDMA24364-B1/B2-L standards for operating and pilot media, ensuring compatibility and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Valve size | 12mm | Standard nominal flow rate | 240l/min 400l/min |
| Pneumatic working port | QS-4 QS-6 | Operating pressure | 2.8bar 8bar |
| Structural design | Poppet valve with return spring | Reset method | Mechanical spring |
| Degree of protection | IP65 | Nominal width | 4mm |
| Exhaust air function | Without flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | External |
| Flow direction | Non-reversible | Symbol | 00991009 |
| Information on operating pressure | 0 – 0.8 bar with external pilot air 0 - 8 bar with external pilot air | Pilot pressure MPa | 0.28MPa 0.8MPa |
| Pilot pressure | 2.8bar 8bar | Switching time off | 14ms |
| On switching time | 6ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 800μs | Max. negative test pulse on 1 signal | 300μs |
| Coil characteristics | 24 V DC: 1.0 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 60°C | Noise level | 85dB(A) |
| Ambient temperature | -5°C 60°C | Product weight | 27.5g |
| Electrical connection | Via sub-base | Type of mounting | On sub-base |
| Auxiliary pilot air port 14 | Sub-base | Pneumatic connection 1 | Sub-base |
| Pneumatic connection 3 | Sub-base | Pneumatic connection 5 | Sub-base |
| Note on materials | RoHS-compliant | Seals material | NBR TPE-U(PU) |
| Housing material | PA-reinforced | Piston slide material | Wrought aluminum alloy |
| Manufacturer ID | 570908 |
Specifications may be subject to change without notice
