Product Model

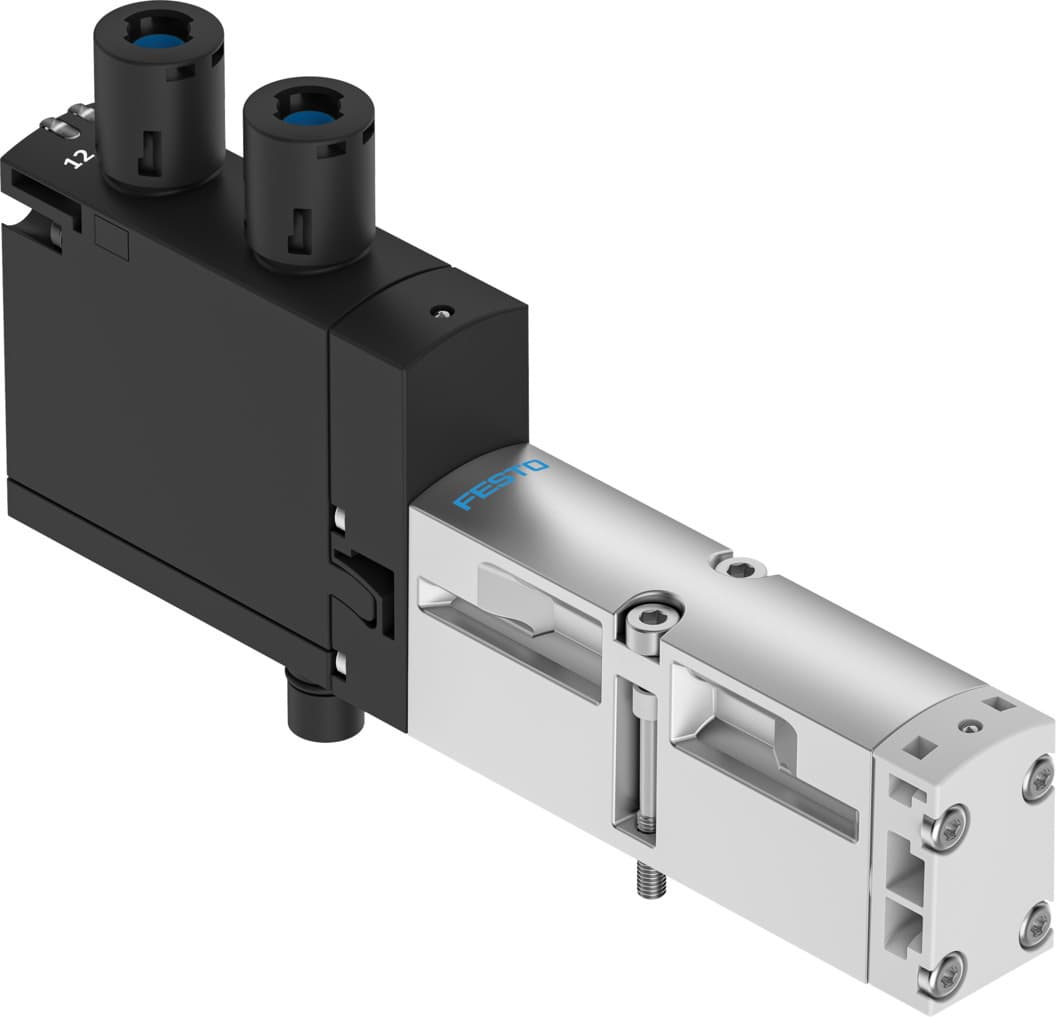

vsva-b-t32u-aztr-a2-1t1l
Key Features
- 1High Flow Rates: Achieve efficient pneumatic operations with a standard nominal flow rate of 400 l/min.
- 2Robust Construction: Built with die-cast aluminum housing and galvanized steel screws for durability.
- 3Reliable Operation: Ensures consistent performance under various operating pressures (3-10 bar) and temperatures (-5°C to 50°C).
- 4Easy Installation: Plug-in electrical connection according to ISO 15407-2 for straightforward integration.
- 5Compliance and Safety: Meets RoHS compliance and has IP65/NEMA 4 protection for safe operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 2x3/2, open, monostable | Actuation type | Electrical |
| Width | 18mm | Standard nominal flow rate | 400l/min |
| Pneumatic working port | Sub-base, size 18 mm as per ISO 15407-1 Connecting plate size 02 according to VDMA 24563 G1/8 | Operating voltage | 24V DC |
| Operating pressure | 3bar 10bar | Structural design | Piston gate valve |
| Certification | c UL us - Recognized (OL) | Degree of protection | IP65 NEMA 4 |
| Exhaust air function | With flow control option Via throttle plate Via individual sub-base | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting via accessory Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | External Internal |
| Flow direction | Non-reversible | Symbol | 00991819 |
| Lap | Overlap | Signal status display | LED |
| Pilot pressure MPa | 0.3MPa 1MPa | Pilot pressure | 3bar 10bar |
| Flow rate of pneumatic valve | 600l/min | Flow rate of pneumatic valve on individual sub-base | 500l/min |
| Optimized flow rate of pneumatic valve, pneumatically concatenated flow | 550l/min | Optimized flow rate of pneumatic valve pneumatically concatenated flow | 400l/min |
| Switching time off | 30ms | On switching time | 12ms |
| Duty cycle | 100% | Max. positive test pulse with 0 signal | 1700μs |
| Max. negative test pulse on 1 signal | 1200μs | Max. current consumption | 60mA |
| Nominal operating voltage DC | 24V | Coil characteristics | 24 V DC: 1.3 W |
| Surge resistance | 2.5kV | Contamination level | 3 |
| Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Relative air humidity | 0 - 90 % |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Product weight | 190g | Electrical connection | Plug-in as per ISO 15407-2 |
| Type of mounting | On sub-base | Pilot air port 12/14 | Sub-base, size 18 mm as per ISO 15407-2 |
| Pilot exhaust air port 82/84 | Ducted Not ducted as per standard Optionally: | Pneumatic connection 1 | Sub-base, size 18 mm as per ISO 15407-2 |
| Pneumatic connection 2 | Sub-base, size 18 mm as per ISO 15407-2 | Pneumatic connection 3 | Sub-base, size 18 mm as per ISO 15407-2 |
| Pneumatic connection 4 | Sub-base, size 18 mm as per ISO 15407-2 | Pneumatic connection 5 | Sub-base, size 18 mm as per ISO 15407-2 |
| Note on materials | RoHS-compliant | Seals material | FPM HNBR NBR |
| Housing material | Die-cast aluminum PA | Material of screws | Steel, galvanized |
| Manufacturer ID | 8033446 |
Specifications may be subject to change without notice
