Product Model
vsva-b-p53c-zd-d2-1r5l
Key Features
- 1High Flow Rates: Achieves standard nominal flow rates of 2,700 l/min and up to 3,600 l/min.
- 2Robust Electrical Actuation: Operates with a nominal current of 165 mA and reduces to 35 mA after 30 ms.
- 3Durable Construction: Made from RoHS-compliant materials including FPM, HNBR, and NBR seals, die-cast aluminium housing, and steel screws.
- 4Versatile Mounting Options: Compatible with various mounting positions and sub-base sizes according to ISO 5599-1.
- 5Enhanced Safety Features: Meets international safety standards including C-Tick, CSA US (OL), UL US (OL), KC mark, and CE marking.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/3, closed | Actuation type | Electrical |
| Width | 52mm | Standard nominal flow rate | 2700l/min |
| Pneumatic working port | Sub-base, size 2 according to ISO 5599-1 G3/8 | Operating voltage | 24V DC |
| Operating pressure | -0.9bar 16bar | Structural design | Piston gate valve |
| Certification | C-Tick c CSA us (OL) c UL us - Recognized (OL) | KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Degree of protection | IP65 NEMA 4 | Nominal width | 15mm |
| Width dimension | 59mm | Exhaust air function | With flow control option Via throttle plate Via individual sub-base |
| Sealing principle | Soft | Mounting position | Any |
| Conforms to standard | ISO 5599-1 | Manual override | Detenting Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | External |

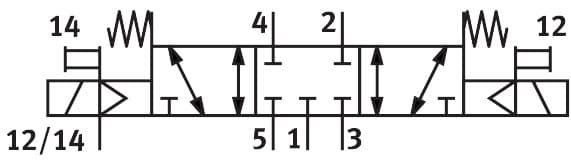

| Flow direction | Any | Symbol | 00991751 |
| Lap | Overlap | Signal status display | LED |
| Pilot pressure MPa | 0.3MPa 1MPa | Pilot pressure | 3bar 10bar |
| Flow rate of pneumatic valve | 3600l/min | Flow rate of pneumatic valve on individual sub-base | 2300l/min |
| Optimized flow rate of pneumatic valve pneumatically concatenated flow | 2700l/min | Switching time off | 60ms |
| On switching time | 23ms | Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 1000μs | Max. negative test pulse on 1 signal | 3500μs |
| Nominal pick-up current per solenoid coil | 165 mA to 30 ms | Nominal current with current reduction | 35 mA after 30 ms |
| Coil characteristics | 24 V DC: 4.6 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -5°C 50°C | Relative air humidity | 0 - 90 % |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 50°C |
| Product weight | 780g | Electrical connection | 3-pin M12x1 Central plug Round design |
| Type of mounting | On sub-base | Pilot air port 12/14 | Sub-base, size 2 as per ISO 5599-1 |
| Pilot exhaust air port 82/84 | Ducted Not ducted as per standard Optionally: | Pneumatic connection 1 | Sub-base, size 2 as per ISO 5599-1 |
| Pneumatic connection 2 | Sub-base, size 2 as per ISO 5599-1 | Pneumatic connection 3 | Sub-base, size 2 as per ISO 5599-1 |
| Pneumatic connection 4 | Sub-base, size 2 as per ISO 5599-1 | Pneumatic connection 5 | Sub-base, size 2 as per ISO 5599-1 |
| Note on materials | RoHS-compliant | Seals material | FPM HNBR NBR |
| Housing material | Die-cast aluminum PA | Material of screws | Steel Galvanized |
| Manufacturer ID | 567007 |
Specifications may be subject to change without notice
